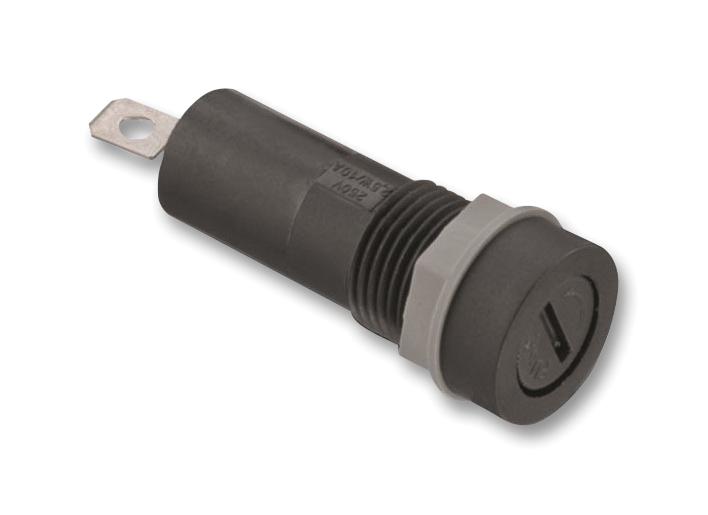

WURTH ELEKTRONIK 696315001002 Shocksafe Fuse Holder
The Würth Elektronik 696315001002 is a panel mount, shocksafe fuse holder designed for general electronics equipment. Constructed with PA66 insulator, copper alloy contacts, and phosphor bronze fuse link, it offers robust performance and reliability. It is RoHS compliant, operates within a temperature range of -30°C to +120°C, and is certified to UL and VDE standards. This fuse holder is suitable for applications requiring reliable fuse protection and is designed to be used with Würth Elektronik counterparts and tools.
WURTH ELEKTRONIK 696315001002 Shocksafe Fuse Holder Specifications:
- Material (Insulator): PA66
- Flammability Rating: UL94V0
- Contact / Plating: Copper Alloy / Ni+Sn
- Fuse Link: Phosphor Bronze / Ni+Sn
- Spring: INOX Steel
- Operating Temperature: -30°C to +120°C
- Compliance: RoHS
- Current Rating (UL): 20 A
- Current Rating (VDE): 10 A
- Working Voltage (UL/VDE): 250 VAC
- Withstanding Voltage: 1.5 KV / 3 KV
- Rated Power Acceptance: 2.5 W
- Contact Resistance: 5/10 mΩ Max
- Fuse-Link Size: 5x20 mm
- Protection Rate: IP40
- Protection Class: I o II
- Shocksafe Category: PC2
- General Tolerance: +/- 0.1
