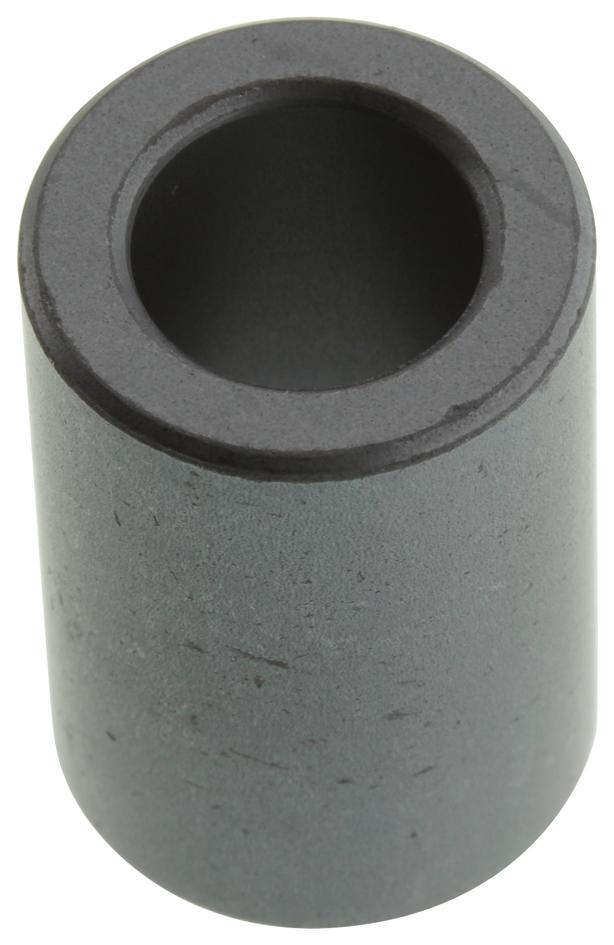

WURTH ELEKTRONIK 74270093 EMI Suppression Ferrite Bead
The 74270093 is an EMI suppression axial ferrite bead made of NiZn core material with a typical impedance of 90Ω at 25 MHz and 150Ω at 100 MHz, suitable for interference filtering in electronic circuits. Designed for use with wires, coaxial cables, and multi-conductor cables, it effectively suppresses common mode noise. Operating from -25°C to +125°C, it is ideal for industrial, RF communication, and computer peripheral applications. The component complies with RoHS and REACH standards, though high demand may extend lead times, and it is not eligible for discounts. Proper installation and handling are essential for optimal performance.
WURTH ELEKTRONIK 74270093 EMI Suppression Ferrite Bead Specifications:
- Core Material: NiZn
- Impedance @ 25 MHz: 90Ω ±25%
- Impedance @ 100 MHz: 150Ω ±25%
- Applicable Cable Diameter: 10.0 mm
- Cable Length: 165 mm
- Operating Temperature: -25°C to +125°C
- Storage Temperature: -20°C to +60°C
- Test Conditions: 20°C, 33% RH
- Material: Ferrite W620
- Initial Permeability: 620 typ.
- Curie Temperature: 150°C typ.
- Frequency Range: 3 MHz to 1000 MHz
- Certifications: RoHS & REACH Compliant
Buy the Wurth Elektronik Series EMI Suppression Ferrite Bead: 74270093
Order the Wurth Elektronik EMI suppression ferrite bead now to ensure high-quality interference filtering in your electronic applications. Designed with NiZn core material for optimal performance across -25°C to +125°C, it effectively reduces common mode noise in cables and wiring systems. Perfect for industrial, RF communication, and computer peripherals, this component guarantees reliable operation under demanding conditions. Due to high market demand, lead times may extend, so secure your supply today and enhance your electronic device's EMI performance easily through our online store.
Buy Wurth Elektronik 74270093 now and experience unmatched interference filtering performance for your electronic circuits.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74270093?
You can click on the BUY or RFQ button to purchase 74270093 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74270093?
You can download the 74270093 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74270093?
WURTH ELEKTRONIK
