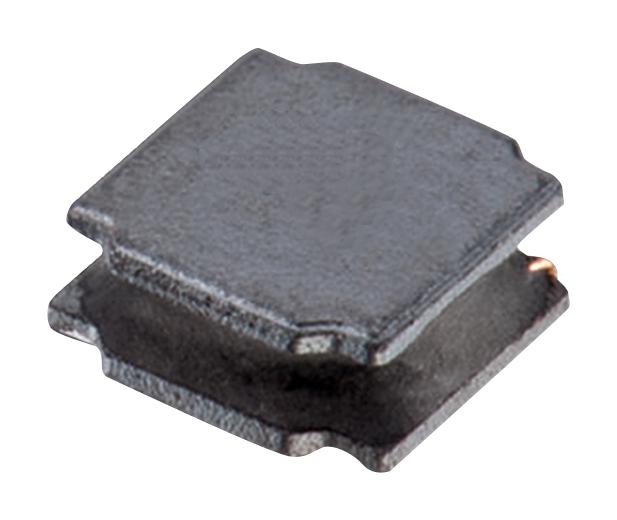

WURTH ELEKTRONIK 74404041047 Power Inductor
The WE-LQS SMD Power Inductor by Wirth Elektronik is designed for efficient energy storage and filtering in electronic circuits. With a typical inductance of 47 uH at 100 kHz/1V and a rated current of 1.55 A, it features a saturation current of approximately 1.90 A. The inductor offers a DC resistance of 91 mΩ at 20°C and has a self-resonant frequency of 55 MHz, suitable for various high-frequency applications. Its compact design and reliability make it ideal for power management in modern electronic systems.
WURTH ELEKTRONIK 74404041047 Power Inductor Specifications:
- Inductance: 47 uH at 100 kHz/1V
- Rated Current: 1.55 A
- Saturation Current: approximately 1.90 A
- DC Resistance: 91 mΩ at 20°C
- Self-resonant Frequency: 55 MHz
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature: -20°C to +60°C (tape & reel)
- Material: Magnetic core with high-frequency characteristics
- Dimensional Compatibility: Recommended land pattern specified in diagram
- Compliance: RoHS & REACH compliant
Buy the Wirth Elektronik 74404041047 – Reliable Power Inductor for Industrial Applications
Discover the high-performance power inductor designed for efficient energy storage and filtering in electronic circuits. With a 47 microhenry inductance, rated for 1.55 amps, and a self-resonant frequency of 55 MHz, this inductor ensures stability across wide temperature ranges. Its compact size and reliable construction make it suitable for power supplies, DC-DC converters, and RF applications, providing excellent magnetic properties and minimal resistance. Purchase online today for innovative solutions that elevate your electronic designs with proven quality and performance.
Buy Wirth Elektronik 74404041047 now and experience unmatched reliability and performance in power management and filtering solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74404041047?
You can click on the BUY or RFQ button to purchase 74404041047 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74404041047?
You can download the 74404041047 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74404041047?
WURTH ELEKTRONIK
