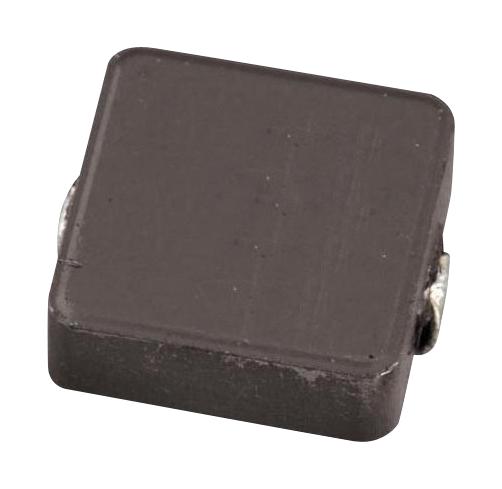

WURTH ELEKTRONIK 74437349150 Power Inductor
The WURTH ELEKTRONIK SMD Power Inductor is designed for electronic circuits requiring high current capacity and stability. It features a compact size with various dimensions, excellent inductance characteristics, low DC resistance, and high self-resonant frequency. Suitable for power supplies and filtering applications, it operates reliably in ambient temperatures from -40°C to +85°C and can withstand operating temperatures up to +125°C. Proper soldering profiles and handling are critical to ensure long-term performance and safety in electronic systems.
WURTH ELEKTRONIK 74437349150 Power Inductor Specifications:
- Inductance: 15 µH ±20%
- Rated Current: 2.75 A max
- Saturation Current: 55 A typical
- DC Resistance @ 20°C: 81.0 mΩ typical, Tmax 92.0 mΩ
- Self Resonant Frequency: 10 MHz typical
- Operating Temperature Range: -40°C to +125°C
- Ambient Temperature: -40°C to +85°C
- Storage Temperature: -20°C to +40°C, 75% RH max
- Material: Copper Alloy
- Dimensions vary with size, e.g., example size 7050: 7.00×7.70×16.00 mm
- Soldering: Reflow profile compliant with IPC/JEDEC standards
- Packaging: Tape and reel per IEC 60286-3:2007 standards
Buy the WURTH ELEKTRONIK 74437349150 – Reliable Power Inductor for Industrial Applications
Purchase the WURTH ELEKTRONIK Power Inductor online today and benefit from its high current capacity, compact design, and reliable performance in demanding electronic applications. Whether for power supply filtering or complex electronic systems, this inductor ensures stability under high temperatures and electrical stress. Easy to integrate with guaranteed quality, it delivers consistent inductance and low resistance. Secure your electronic projects with this top-quality component designed for durability, safety, and optimal electrical performance in industrial and commercial environments.
Get WURTH ELEKTRONIK 74437349150 today—built for precision, robustness, and long-lasting durability in electronic circuits.
