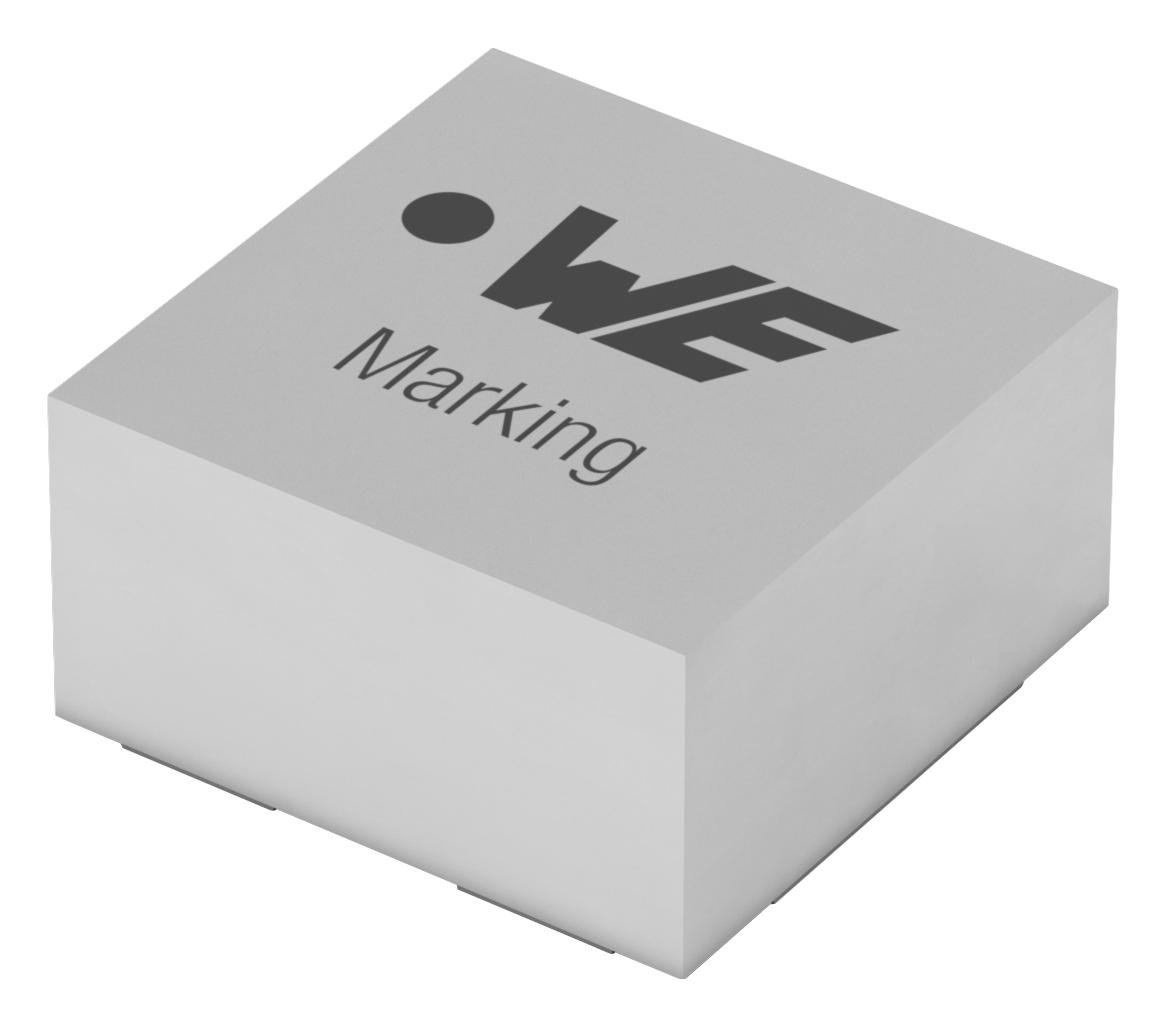

WURTH ELEKTRONIK 74438356056HT Power Inductor
The WE-MAPI SMT Power Inductor is designed for use in electronic circuits requiring high current and inductance stability. Featuring RoHS and Halogen-Free approvals, it offers excellent electrical performance with inductance values around 5.6 μH at 100 kHz/10 mA, DC resistance of approximately 70-80.5 mo, and self-resonant frequency near 7 MHz. The inductor operates between -55°C to +150°C, with temperature rise and current ratings suitable for high-power applications. Its compact design ensures reliable performance in power management and signal filtering for modern electronic devices.
WURTH ELEKTRONIK 74438356056HT Power Inductor Specifications:
- Inductance: 5.6 μH at 100 kHz/10 mA
- DC Resistance: 70-80.5 mo @ 20°C
- Self Resonant Frequency: 7 MHz
- Operating Temperature Range: -55°C to +150°C
- Ambient Temperature: -55°C to +110°C
- Storage Conditions: < 40°C; < 75% RH
- Moisture Sensitivity Level: 1
- RoHS, Halogen Free compliant according to JEDEC1S7096 and IEC 61249-2-21
- Max. Rated Current: 29 A
- Saturation Current: 3.5 A
- Solder Resist: Yes
- Schematic: Scale - 6:1, Marking: 5R6 (Inductance Code)
- Compliance Certifications: RoHS, REACH, Halogen Free
Buy the WURTH ELEKTRONIK 74438356056HT – Reliable SMT Power Inductor for Industrial Applications
Purchase the WURTH ELEKTRONIK SMT Power Inductor online today—engineered for high power applications with a compact design, high current rating, and excellent electrical performance. This inductance component meets RoHS and Halogen-Free standards, making it suitable for modern electronic devices and power management systems. Its reliable construction ensures stable operation across a wide temperature range from -55°C to +150°C. Ideal for signal filtering, energy storage, and power circuits, this inductor provides long-term durability and consistent performance. Buy now for efficient electronic solutions.
Get WURTH ELEKTRONIK 74438356056HT today—built for high current and long-lasting durability in power electronic circuits.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74438356056HT?
You can click on the BUY or RFQ button to purchase 74438356056HT from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74438356056HT?
You can download the 74438356056HT datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74438356056HT?
WURTH ELEKTRONIK
