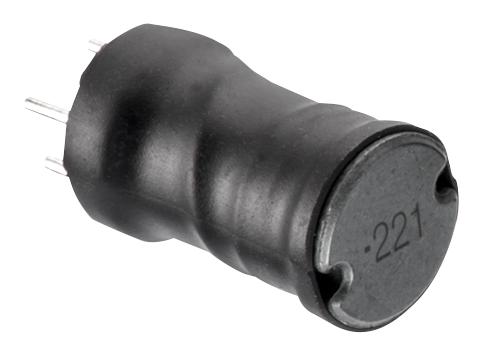

WURTH ELEKTRONIK 7447231471 Wire Wound Inductor
The WE-TIF Radial Leaded Wire Wound Inductor with four pins is designed for general electronic applications requiring reliable inductive components. It features an inductance of 470 uH with a tolerance of +10%, rated currents up to 1.20 A, and saturation currents approximately 1.50 A. Operating within ambient temperatures of -40°C to +85°C, it ensures optimal performance with a self-resonant frequency of 1.6 MHz. Suitable for diverse electronic circuits, it adheres to RoHS and REACH standards, offering robust mechanical and electrical characteristics for professional use.
WURTH ELEKTRONIK 7447231471 Wire Wound Inductor Specifications:
- Inductance: 470 uH +10%
- Rated current: 1.20 A
- Saturation current: approximately 1.50 A
- DC Resistance: 360 mΩ typical, 410 mΩ max
- Self resonant frequency: 1.6 MHz typical
- Operating temperature: -40°C to +125°C
- Ambient temperature: -40°C to +85°C
- Storage temperature: -20°C to +40°C, 75% RH max
- Material: Ferrite core, wire wound, 4 pins
- RoHS and REACH compliant
- Dimensions: size 1018 mm (external dimensions specified externally)
Buy the WURTH ELEKTRONIK 7447231471 – Reliable Inductor for Industrial Applications
Order the WURTH ELEKTRONIK wire wound inductor 7447231471 today to ensure high performance and reliability in your electronic designs. Designed for general electronic applications, this inductive component features a 470 uH inductance, rated current of 1.20 A, and saturation around 1.50 A. It operates at temperatures from -40°C to +125°C, with a self-resonant frequency of 1.6 MHz. RoHS and REACH compliant, it guarantees quality and safety, making it an essential part for professional electronic engineers and manufacturing professionals.
Buy WURTH ELEKTRONIK 7447231471 now and experience unmatched reliability and performance in your electronic circuits.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447231471?
You can click on the BUY or RFQ button to purchase 7447231471 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447231471?
You can download the 7447231471 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447231471?
WURTH ELEKTRONIK
