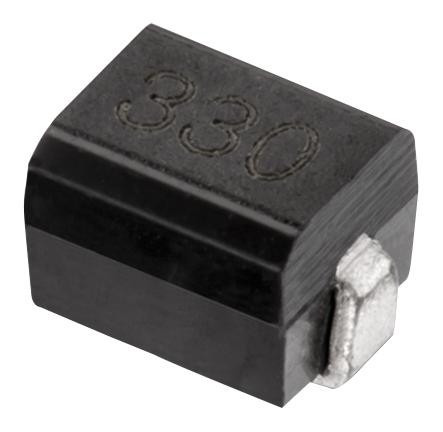

WURTH ELEKTRONIK 7447649133 High Frequency SMD Inductor
The WE-GFH High Frequency SMD Inductor is a compact, high-performance electronic component designed for use in electronic circuits requiring high-frequency inductance. Crafted with RoHS and REACh compliance, it offers excellent electrical properties including self-resonant frequency up to 22 MHz and low DC resistance of around 3276 to 3640 mΩ at 20°C. Suitable for applications demanding high reliability and stability, it features a size of 3225 and is suitable for automated SMT assembly with specific reflow soldering profiles. Designed to meet rigorous safety and performance standards, it is ideal for power filtering, RF circuits, and high-frequency modules under ambient temperatures from -40°C to +125°C.
WURTH ELEKTRONIK 7447649133 High Frequency SMD Inductor Specifications:
- Size: 3225
- RoHS & REACh compliant
- Inductance: 33 μH ±10% at 1.65 MHz
- Rated current: 320 mA maximum
- DC Resistance at 20°C: 3276 to 3640 mΩ
- Self resonant frequency: 22 MHz
- Maximum operating temperature: 125°C
- Ambient temperature range: -40°C to +85°C
- Storage temperature: -20°C to +60°C
- Reflow profile: Max ramp-up rate 3°C/s, peak temperature 245°C
- Material: High-frequency ferrite core, SMD package
- Application: RF circuits, power filtering, high-frequency modules, electronic circuits demanding high stability
Buy the Buy WURTH ELEKTRONIK High Frequency SMD Inductor Part Number 7447649133 Online
Secure your WURTH ELEKTRONIK High Frequency SMD Inductor with part number 7447649133 today. This compact, RoHS and REACh compliant component ensures superior RF filtering and power stability. Designed for automated SMT assembly and capable of operating reliably at temperatures up to 125°C, it suits high-frequency applications in communication devices, RF modules, and power supplies. Improve your circuit's performance with this durable and precise inductor, available online for fast delivery and guaranteed quality. Make your order now and enhance your electronic systems’ reliability.
Buy WURTH ELEKTRONIK 7447649133 high frequency SMD inductor now and experience unmatched reliability and high-performance filtering in your electronic designs.
