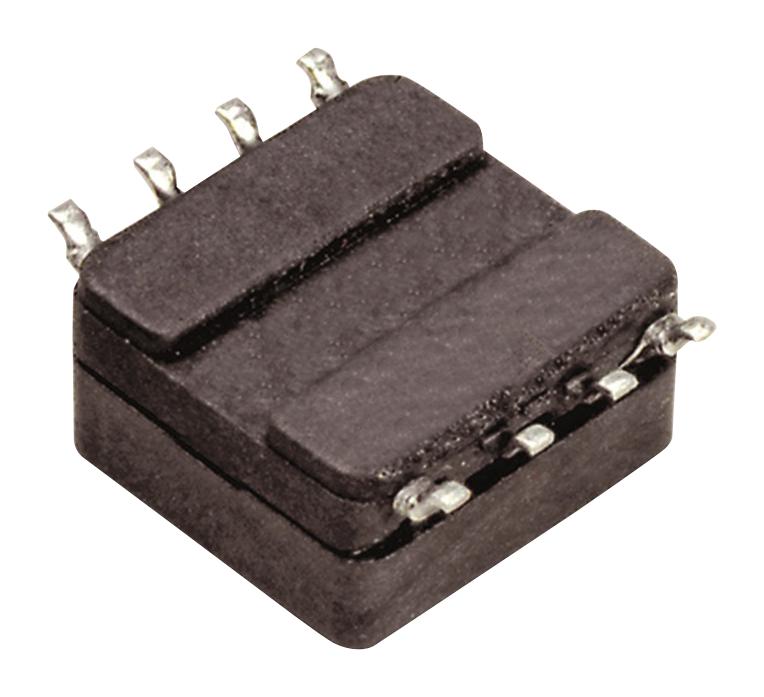

WURTH ELEKTRONIK 744206 Common Mode Line Filter
The WURTH ELEKTRONIK WE-SL SMD Common Mode Line Filter is engineered for use in electronic equipment requiring effective noise suppression and electromagnetic compatibility. This compact filter provides high impedance at RF frequencies to minimize electromagnetic interference, making it suitable for sensitive circuits. Designed to meet RoHS and REACH compliance, it features a robust construction with a rated voltage of 80 V, operating temperature up to 125°C, and provides optimal impedance characteristics at multiple frequencies. Ideal for industrial, medical, and communication devices, it guarantees reliable performance and durability in harsh environments. Proper soldering and handling ensure long-term functionality.
WURTH ELEKTRONIK 744206 Common Mode Line Filter Specifications:
- Inductance: 2x60 uH ±35%
- Impedance: Max 1600 Q at 100 kHz/20 mV
- Rated current: 2000 mA max at T=40K
- DC Resistance: 2x0.065 Ω max
- Leakage inductance: 86 nH typical at 1 MHz/1 mA
- Insulation test voltage: 500 V max
- Rated voltage: 80 V max
- Operating temperature: -40°C to +125°C
- Storage temperature: -20°C to +40°C, 75% RH max
- Soldering profile: Max Ramp Up Rate 3°C/s, Max Ramp Down Rate 6°C/s
- Package classification: <1.6 mm thickness, 260°C reflow temperature for Pb-Free assembly
- Length: 24 mm, Width: 9 mm, Height: 6 mm
Buy the WURTH ELEKTRONIK 744206 – Reliable Common Mode Line Filter for Industrial Applications
Enhance your electronic equipment with the WURTH ELEKTRONIK Common Mode Line Filter. Designed for high-performance noise suppression, it ensures electromagnetic compatibility in industrial, medical, and communication devices. With its compact size, rated voltage of 80 V, and operating temperature up to 125°C, this filter guarantees durability and reliable performance. Easy to install using recommended soldering profiles, it complies with RoHS and REACH standards. Ensure optimal electromagnetic interference reduction by purchasing this high-quality component online today for a safer, more efficient electronic system.
Buy WURTH ELEKTRONIK 744206 now and experience unmatched noise suppression and EMI filtering in industrial and communication equipment.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744206?
You can click on the BUY or RFQ button to purchase 744206 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744206?
You can download the 744206 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744206?
WURTH ELEKTRONIK
