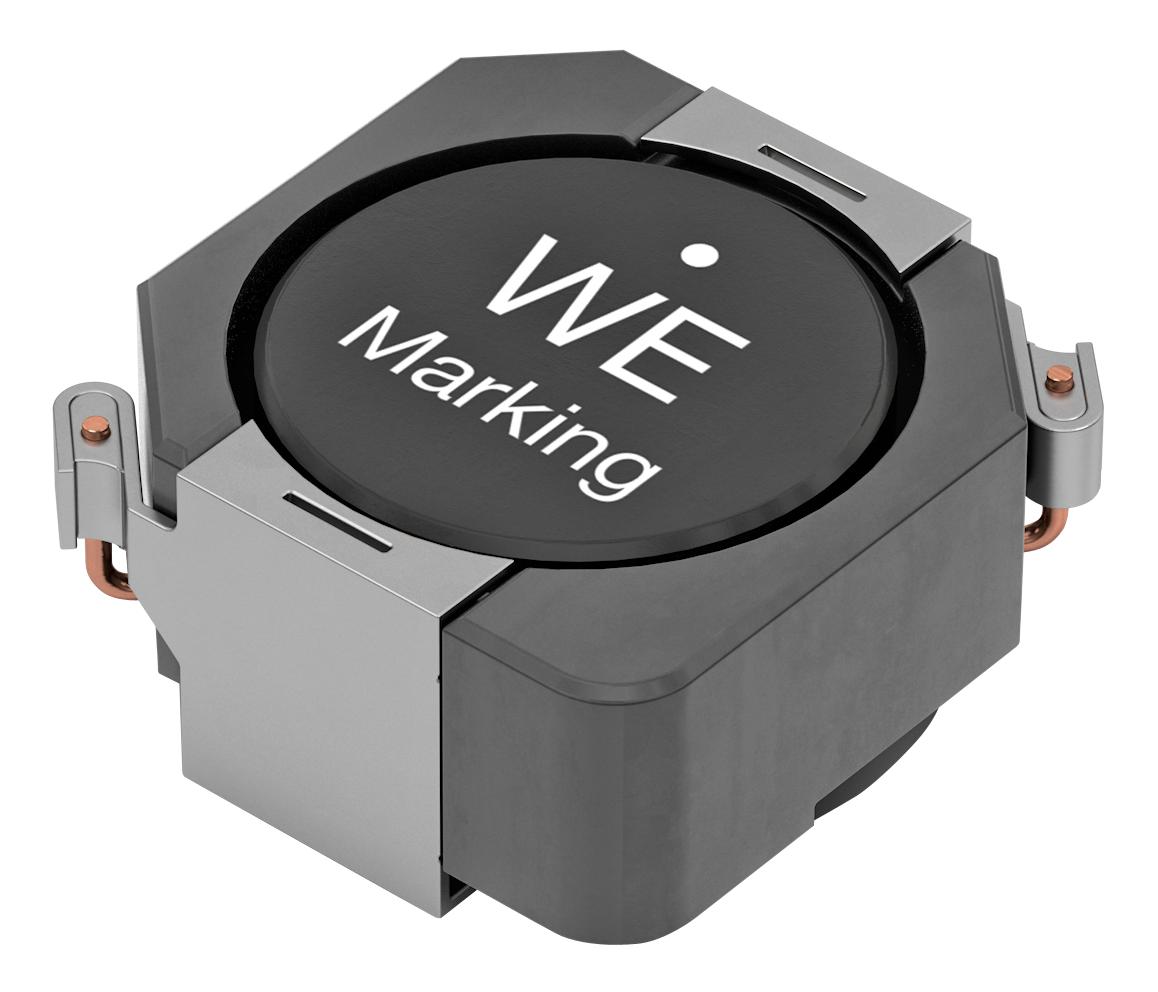

WURTH ELEKTRONIK 7447773100 Power Inductor
This shielded power inductor offers reliable performance in electronic applications, featuring a high self-resonant frequency of 23 MHz and a maximum operating voltage of 120 V. Designed with RoHS and REACH compliance, it incorporates low DC resistance of 37.5 mΩ at 20°C, and has a saturation current of 3.8 A. Suitable for use in power supply filters and electronic circuits, it is environmentally friendly, halogen-free, and meets industry standards for durability and electrical properties. Its compact design ensures efficient space utilization in electronic assemblies.
WURTH ELEKTRONIK 7447773100 Power Inductor Specifications:
- Inductance: 100 μH ±20%
- Rated Current: 26 A at 40 KHz
- Saturation Current: 3.8 A typ.
- DC Resistance: 37.5 mΩ at 20°C, max 45 mΩ
- Self Resonant Frequency: 23 MHz typ.
- Operating Voltage: 120 V maximum
- Ambient Temperature Range: -40°C to +110°C
- Operating Temperature: -40°C to +150°C
- Moisture Sensitivity Level: MSL 1
- Certifications: RoHS, REACH, Halogen Free (JEDEC 709B)
Buy the WURTH ELEKTRONIK 7447773100 – Reliable Shielded Power Inductor for Industrial Applications
Purchase the high-quality power inductor from WURTH ELEKTRONIK today and enhance your electronic designs. Designed with industry standards, it offers excellent inductance, high current capacity, and low resistance for power supply filtering and circuit stability. The compact, RoHS-compliant design ensures compatibility with a wide range of electronic equipment, providing reliable operation even in demanding environments. Buy online now for fast delivery and superior performance in your next project.
Buy WURTH ELEKTRONIK 7447773100 now and experience unmatched reliability and performance in power management solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447773100?
You can click on the BUY or RFQ button to purchase 7447773100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447773100?
You can download the 7447773100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447773100?
WURTH ELEKTRONIK
