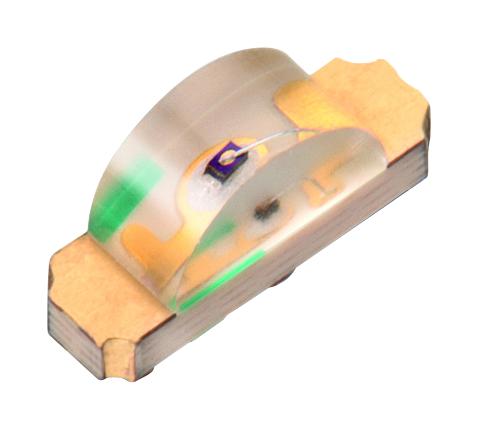

WURTH ELEKTRONIK 155060SS73200 Super Red LED
This waterclear SMT mono-color side view LED features high luminous intensity ranging from 45 to 80 mcd at 20mA, with a super red emission color. It is designed with AllnGaP chip technology, offering excellent optical and electrical properties such as a typical forward voltage of 2.0 to 2.4 V, spectral bandwidth of 20 nm, and a viewing angle of around 100°. It operates reliably within -40°C to +85°C, complies with RoHS and REACH standards, and is suitable for various electronic applications requiring robust optoelectronic components.
WURTH ELEKTRONIK 155060SS73200 Super Red LED Specifications:
- Forward Voltage: 2.0 to 2.4 V at 20mA
- Luminous Intensity: 45 to 80 mcd at 20mA
- Peak Wavelength: 645 nm
- Dominant Wavelength: 630 nm
- Spectral Bandwidth: 20 nm
- Reverse Voltage: 5 V
- Viewing Angle: approximately 100°
- Operating Temperature: -40°C to +85°C
- Storage Conditions: < 40°C, 90% RH; for moisture sensitivity level 3
- Chip Technology: AllnGaP
- Emitting Color: Super Red
- Certifications: RoHS, REACH, Halogen Free
- Peak junction temperature: 115°C
- ESD Threshold: 2000 V
Buy the Buy WURTH ELEKTRONIK LED Part Number 155060SS73200 Online
Order WURTH ELEKTRONIK Super Red LED Part Number 155060SS73200 online today and enhance your electronic projects with high luminous intensity and excellent reliability. This SMT waterclear LED features AllnGaP chip technology, a spectral wavelength of 645 nm, a viewing angle of around 100°, and operates within -40°C to +85°C. Certified RoHS and REACH compliant, it is suitable for various safety-critical and high-reliability applications. Take advantage of our seamless online purchasing process to ensure fast delivery and premium quality for your optoelectronic needs.
Buy WURTH ELEKTRONIK LED Part Number 155060SS73200 now and experience reliable high-intensity super red emission for your electronic applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 155060SS73200?
You can click on the BUY or RFQ button to purchase 155060SS73200 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 155060SS73200?
You can download the 155060SS73200 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 155060SS73200?
WURTH ELEKTRONIK
