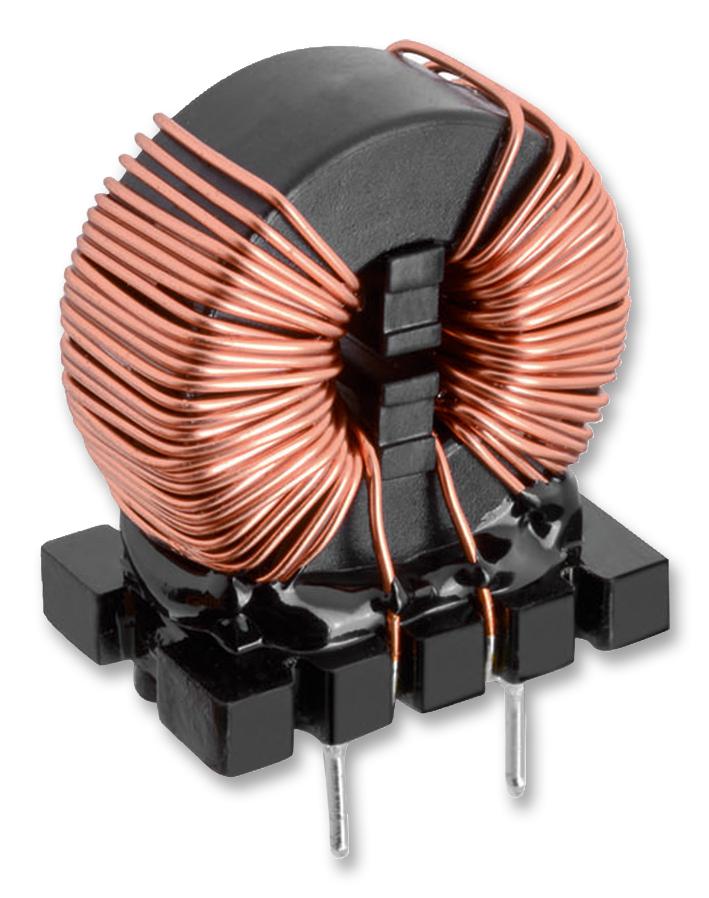

WURTH ELEKTRONIK 7448042001 Common Mode Choke
This high-performance common mode power line choke is designed for EMC and inductive solutions in electronic equipment. It features a rated current of 20.0 A at 70°C, inductance of 2x1.0 mH with a tolerance of +50%/-30%, and a maximum DC resistance of 2x24 mΩ at 20°C. Suitable for general electronic applications, it withstands insulation test voltages up to 1500 VAC and rated voltages up to 250 VAC at 50 Hz, offering reliable electromagnetic interference suppression and power line filtering for industrial and electronic systems.
WURTH ELEKTRONIK 7448042001 Common Mode Choke Specifications:
- Inductance: 2x1.0 mH +50%/-30%
- Rated current at 70°C: 20.0 A max.
- DC Resistance at 20°C: 2x24 mΩ max.
- Rated voltage at 50 Hz: 250 VAC max.
- Insulation test voltage: 1500 VAC
- Operating temperature range: -40°C to 125°C
- Storage temperature: -20°C to 60°C
- Temperature rise: < 55K
- Material: Ferrite core with wire windings
- Dimensions: Not specified in the provided data
- Compliance: RoHS & REACH
- Lead time note: Extended lead times due to market demand
- Exempt from discounts: Yes
- Product weight and size details: Not specified
Buy the WURTH ELEKTRONIK 7448042001 – Reliable Power Line Choke for Industrial Applications
Enhance your electronic systems with the reliable common mode choke from WURTH ELEKTRONIK. Featuring a rated current of 20A, inductance of 2x1.0 mH, and high insulation voltages, it provides excellent electromagnetic interference suppression for industrial and general electronic applications. Designed for durability and performance, this component ensures effective power line filtering and EMI reduction. Secure your supply chain now by purchasing online; this product benefits from extended lead times, so order today to ensure timely integration into your projects and reliable operation in critical environments.
Get WURTH ELEKTRONIK 7448042001 today—built for precision and long-lasting durability in EMC filtering and power line solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7448042001?
You can click on the BUY or RFQ button to purchase 7448042001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7448042001?
You can download the 7448042001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7448042001?
WURTH ELEKTRONIK
