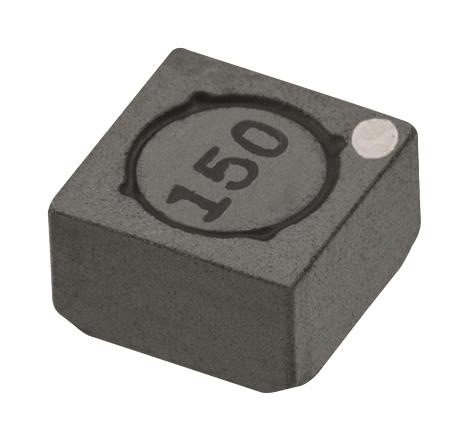

WURTH ELEKTRONIK 744889030100 Coupled Inductor
The WE-MTCI SMD Multi-Turn Ratio inductor from Wirth Elektronik offers high inductance and precision for electronic circuits. Designed to operate efficiently within a temperature range of -40°C to +125°C, this coupled inductor features a turns ratio of 1:3, a maximum DC resistance of 500 mΩ, and a rated voltage of 80 V. Ideal for power supplies and filtering applications in industrial and consumer electronics, it is compliant with international standards and suitable for surface-mount technology, ensuring reliable performance in demanding environments.
WURTH ELEKTRONIK 744889030100 Coupled Inductor Specifications:
- Turns Ratio: 1:3
- Rated Voltage: 80 V
- DC Resistance: Max 500 mΩ at 20°C
- Temperature Range: -40°C to +125°C
- Insulation Test Voltage: 800 V (AC, 3 seconds)
- Self Resonant Frequency: 8 MHz (typical)
- Operating Temperature: -40°C to +125°C
- Saturation Current: 1.5 A typical, max 2 A
- Inductance: 90 μH (typical), +20% tolerance at 100 kHz/100 mV
- Storage Temperature: 20°C to +60°C
- Package: Surface-mount, tape and reel compliant with IEC 60286-3:2013
Buy the Wirth Elektronik WE-MTCI – Reliable Inductors for Industrial Applications
Purchase the Wirth Elektronik WE-MTCI coupled inductor online now and benefit from high inductance, excellent thermal stability, and proven reliability. This surface-mount component with a 1:3 turns ratio is perfect for industrial, power supply, and filtering applications. Its robust design ensures consistent performance across a wide temperature range from -40°C to +125°C, with a maximum DC resistance of 500 mΩ and rated voltage of 80 V. Easy to integrate, compliant with IEC standards, and available for quick delivery—order today for quality assurance in your electronic projects.
Order your Wirth Elektronik WE-MTCI coupled inductor today and ensure dependable performance for power regulation and filtering in demanding industrial environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744889030100?
You can click on the BUY or RFQ button to purchase 744889030100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744889030100?
You can download the 744889030100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744889030100?
WURTH ELEKTRONIK
