WURTH ELEKTRONIK 7488940245 Wireless Communication Antenna

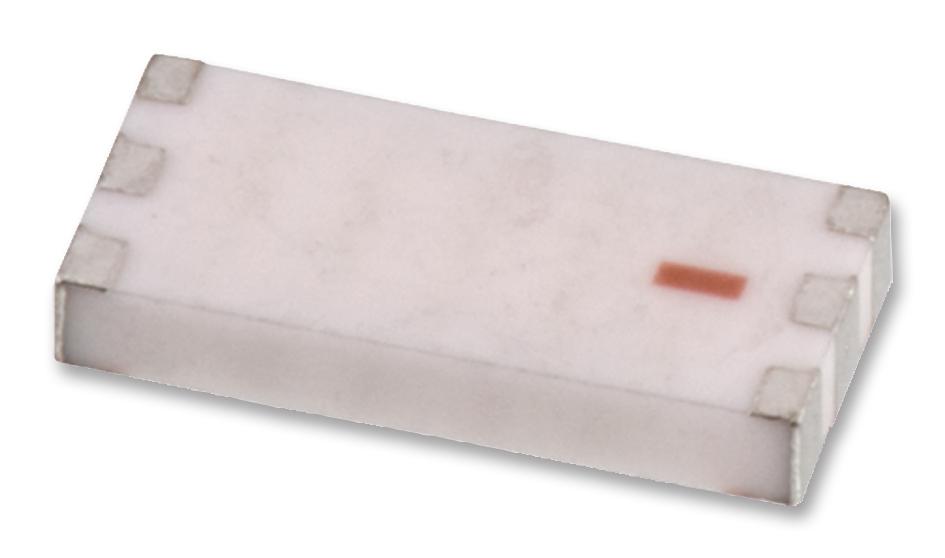

The Chip-Antenna WE-MCA from WURTH ELEKTRONIK is a compact, RoHS-compliant SMD antenna suitable for 2400 to 2500 MHz applications. It features a size of 7x2 mm, impedance of 50 ohms, and a peak gain of 2.0 dBi. Designed for indoor wireless communication, it offers excellent efficiency and reliable performance in IoT, RFID, and WLAN devices. Operating temperature ranges from -40°C to +85°C, supporting power capacities up to 3 W. Its ceramic base ensures durability and stability in various environmental conditions.
WURTH ELEKTRONIK 7488940245 Wireless Communication Antenna Specifications:
- Size: 7x2 mm
- Frequency Range: 2400... 2500 MHz
- Impedance: 50 Ω
- Peak Gain: 2.0 dBi
- Average Gain: 0.5 dBi
- Material: Ceramic
- Operating Temperature: -40°C to +85°C
- Power Capacity: 3 W max
- VSWR: 2.0 max
- Humidity Range: 50-70%
- Base Material: Ceramic
- Contact Material: Silver/Nickel/Tin plated
- Dimensions: 7 mm x 2 mm
- Designed for PCB mounting without matching circuit
Buy the WURTH ELECTRONIK Series WE-MCA Chip-Antenna: 7488940245
Enhance your wireless communication devices with the WURTH ELECTRONIK Series WE-MCA Chip-Antenna. This RoHS-compliant SMD antenna operates in the 2400-2500 MHz band, offering 2.0 dBi peak gain and a compact size of 7x2 mm. Built with durable ceramic material, it supports up to 3 W power and is suitable for IoT, RFID, and WLAN applications. Easy to mount on PCBs without matching circuits, ensuring efficient signal transmission and robust performance in various environments.
Order your WURTH ELECTRONIK Series WE-MCA 7488940245 today and ensure reliable wireless connectivity for your IoT projects.
