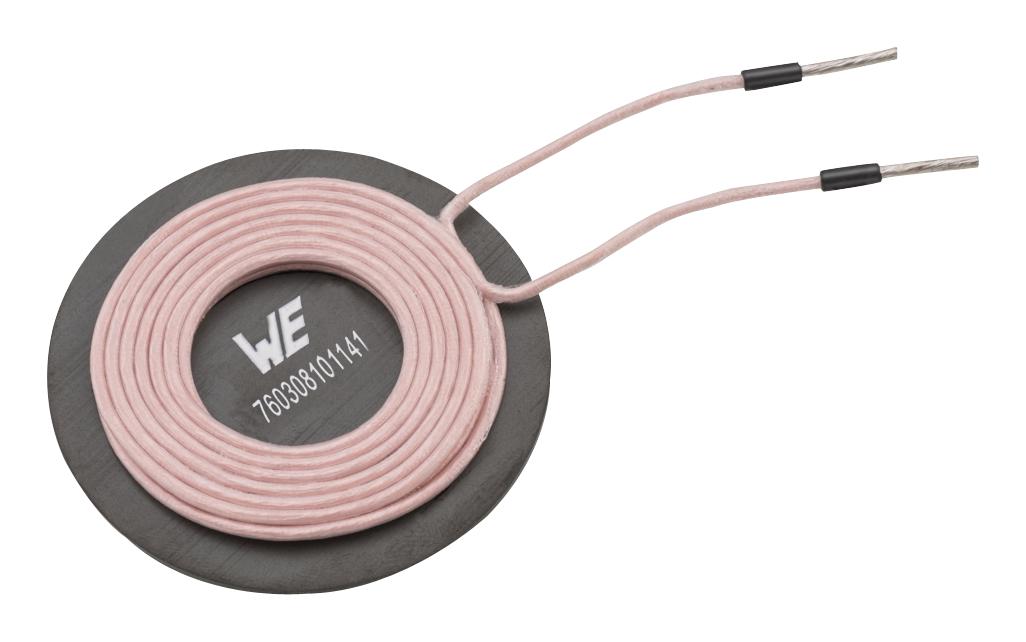

WURTH ELEKTRONIK 760308101141 Wireless Power Coil
This wireless power transmitter coil is designed for efficient energy transfer in wireless charging systems. With a self-resonant frequency of 1 MHz and high Q-Factor of 220 at 125 kHz, it offers reliable performance. Rated at 9 A with a maximum saturation current of 16 A, it ensures safe operation. Its dimensions and inductance are optimized for optimal coupling and minimal resistance. Suitable for advanced electronic applications, it maintains excellent electrical properties within specified temperature and environmental conditions. Compatible with wave soldering processes for manufacturing.
WURTH ELEKTRONIK 760308101141 Wireless Power Coil Specifications:
- Inductance: 125 kHz, 10 mA, 10% tol
- Q-Factor: 220 at 125 kHz
- Rated Current: 9 A
- Saturation Current: 16 A
- DC Resistance: 5.0 mΩ at 20°C max, typ
- Self Resonant Frequency: 1 MHz
- Operating Temperature: -20°C to +105°C
- Storage Temperature: 20°C to +60°C
- Preheat Temperature (Wave Soldering): 100°C min, 120°C typical, 130°C max
- Peak Temperature: 250°C - 260°C
- Material: Ferrite core, copper conductors
- Dimensions: Not specified in the data, optimized for application
- Testing Conditions: +20°C, 33% RH
Buy the Wirth Elektronik Series Wireless Power Transmitter Coil: 760308101141
Purchase the Wirth Elektronik wireless power transmitter coil online today to ensure seamless energy transfer in your wireless charging applications. This coil offers a resonant frequency of 1 MHz, high Q-Factor, and rated current of 9 A for reliable operation. Designed for efficient energy coupling and minimal resistance, it supports high-temperature operation up to +105°C and features optimized dimensions for various applications. Easy to integrate with wave soldering compatibility, this coil guarantees top-tier performance. Buy now and upgrade your wireless power solutions with trusted quality.
Order your Wirth Elektronik Series Wireless Power Transmitter Coil today and enhance your wireless charging systems with dependable, efficient performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 760308101141?
You can click on the BUY or RFQ button to purchase 760308101141 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 760308101141?
You can download the 760308101141 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 760308101141?
WURTH ELEKTRONIK
