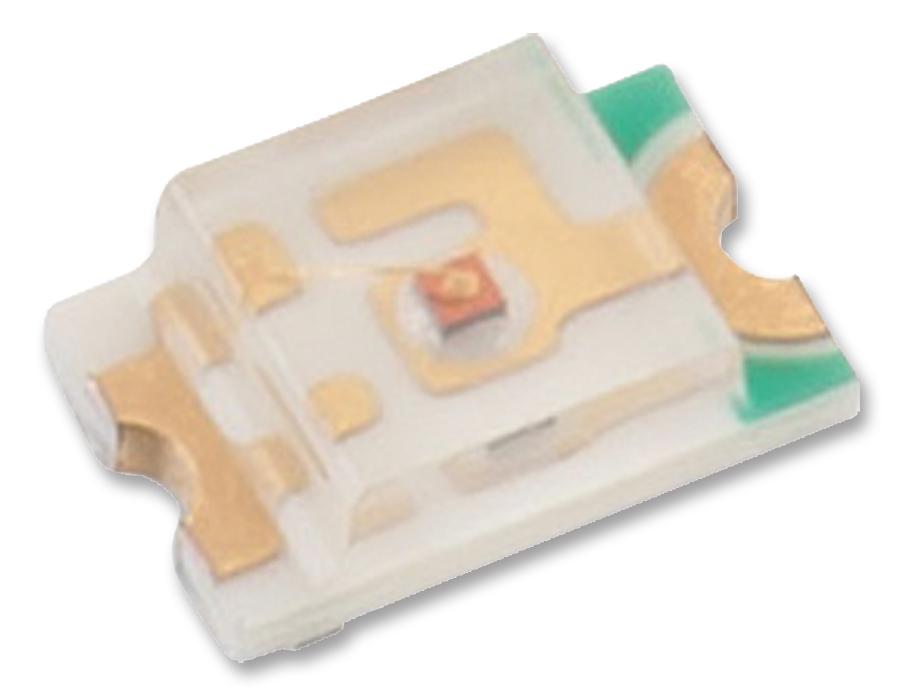

WURTH ELEKTRONIK 150080GS75000 SMD Chip LED
The WURTH ELEKTRONIK 150080GS75000 is a compact, surface-mount LED designed for a wide range of applications. This green LED offers a luminous intensity between 220 and 450 mcd, with a typical dominant wavelength of 520nm. It's ideal for indicator lights, backlighting, and general illumination in consumer electronics and industrial equipment. The component is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 150080GS75000 SMD Chip LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Green
- Lens Type: Chip LED
- Power Dissipation: 105 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level MSL: 3
- Peak Wavelength: 515 nm
- Dominant wavelength: 520 nm
- Luminous Intensity: 220-450 mcd
- Forward Voltage: 3.2-3.5 V
- Spectral Bandwidth: 30 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 140°
