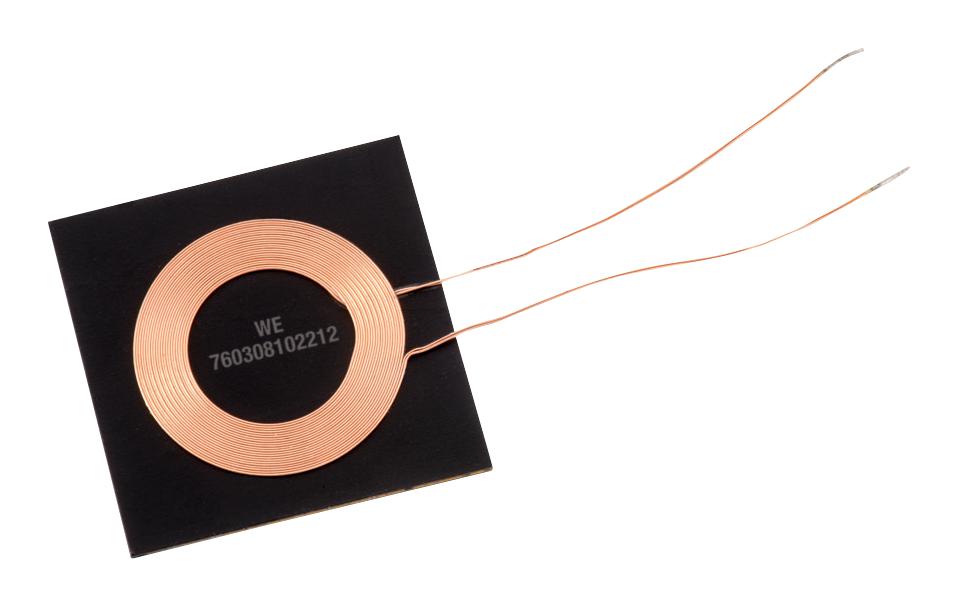

WURTH ELEKTRONIK 760308102212 Wireless Power Receiver Coil
The wireless power charging receiver coil is designed for efficient wireless energy transfer, featuring a compact copper coil, ferrite sheet, and adhesive components for easy integration. It operates within a temperature range of -20°C to +105°C, ensuring durability in various environments. The coil exhibits an inductance of 54 microhenries at 10mA and a Q-factor of 0.18 at 125 kHz, with a rated current of 2A and saturation current of 4A. Its self-resonant frequency is 25 MHz, making it suitable for modern wireless power applications, with wave soldering compatibility and robust electrical properties.
WURTH ELEKTRONIK 760308102212 Wireless Power Receiver Coil Specifications:
- Inductance: 54 μH at 10 mA
- Q-Factor: 0.18 at 125 kHz
- Rated Current: 2 A
- Saturation Current: 4 A
- DC Resistance: 190 mΩ at 20°C
- Max DC Resistance: 240 mΩ
- Self Resonant Frequency: 25 MHz
- Operating Temperature: -20°C to +105°C
- Storage Temperature: -20°C to +65°C
- Wave Soldering Profile: Suitable for wave soldering, with specific temperature and time guidelines
- Physical Features: Copper coil, ferrite sheet, PET adhesive layer, release paper
- Recommended Hole Pattern: 1.0 mm minimum, 2.0 mm max
- Material: Copper, ferrite, PET, adhesive tape
- Compliance: EN61760-1:2006
Buy the Wirth Elektronik 760308102212 – Reliable Wireless Power Receiver Coil for Industrial Applications
Enhance your wireless charging systems with the Wirth Elektronik wireless power receiver coil, offering high inductance, excellent performance at 125 kHz, and a broad operating temperature range. Designed for easy integration with ferrite sheets and adhesive bonding, it guarantees efficient energy transfer for industrial and consumer electronic devices. This coil's robust electrical properties, wave soldering compatibility, and high self-resonant frequency ensure durable and reliable operation. Order online now to improve your wireless power solutions with proven quality and performance standards.
Buy Wirth Elektronik 760308102212 now and experience unmatched reliability and performance in efficient wireless power transfer.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 760308102212?
You can click on the BUY or RFQ button to purchase 760308102212 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 760308102212?
You can download the 760308102212 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 760308102212?
WURTH ELEKTRONIK
