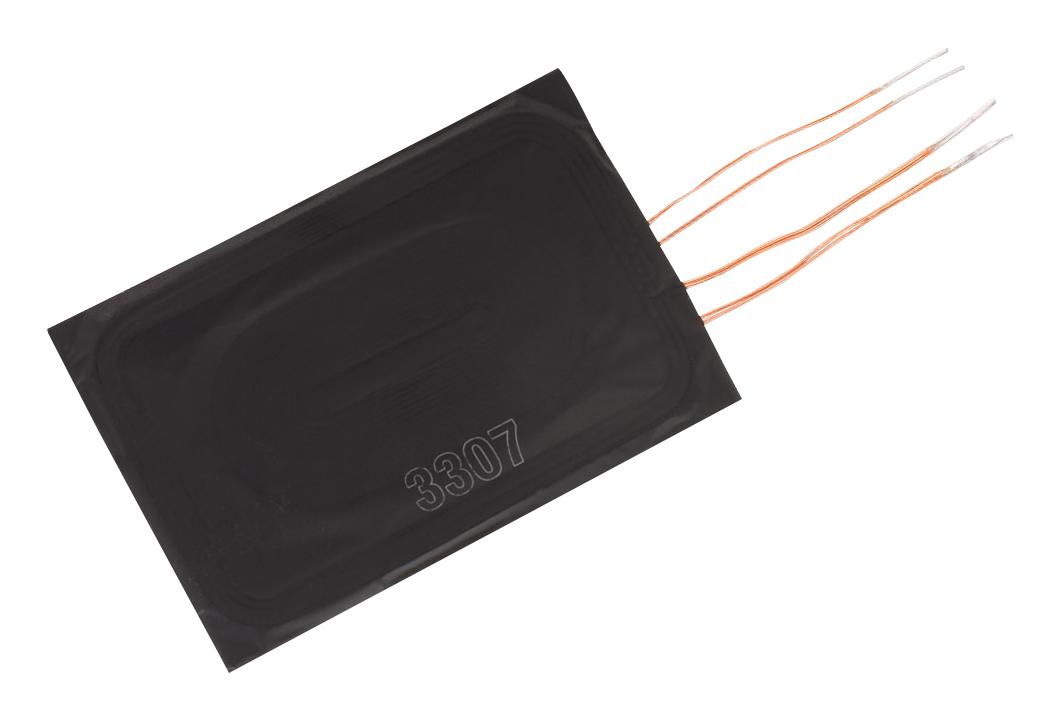

WURTH ELEKTRONIK 760308103307 Wireless Power Coil
The wireless power receiver coil is designed for efficient energy transfer in wireless charging applications. It features a compact design with copper coils for high conductivity. Suitable for various industrial and consumer electronics where reliable wireless power transfer is needed. The coil supports operation up to +105°C, with stable inductance, low resistance, and high Q-factor for optimal performance. Its robust construction ensures durability and consistent performance in demanding environments, making it ideal for integrating into wireless charging systems and portable devices requiring dependable power reception.
WURTH ELEKTRONIK 760308103307 Wireless Power Coil Specifications:
- Dimensions: according to sectional drawing A-A, typical length and diameter specifications
- Material: Copper Coil
- Operating Temperature: -20°C to +105°C
- Inductance: 43.65 MHz, typical 78 μH with ±10% variation
- Rated Current: 1.5 A, max 3 A
- DC Resistance: approximately 80-90 mΩ at 20°C
- Self Resonant Frequency: 22-24 MHz
- Preheat Temperature: Min 100°C, Typical 120°C, Max 130°C
- Peak Reflow Temperature: 235°C - 260°C
- Wave Soldering: recommended, not suitable for reflow
- Storage Temperature: 20°C to 60°C in original packaging
- Compliance: Follow technical specifications, wave soldering recommended, handle with care due to weight
Buy the Wirth Elektronik WE-WPCC – Reliable Wireless Power Receiver Coil for Industrial Applications
Transform your wireless charging solutions with the Wirth Elektronik WE-WPCC receiver coil. Engineered for stability and durability, this coil enables efficient energy transfer in industrial and portable device applications. Operating reliably up to +105°C, it features low DC resistance and high Q-factor for peak performance. Its compact copper coil ensures robust electrical conductivity, making it ideal for integrating into demanding environments. Purchase online today to upgrade your wireless power setup with trusted quality and consistent operation, ensuring a seamless user experience and dependable power reception.
Order your Wirth Elektronik WE-WPCC wireless receiver coil today and enhance your wireless charging systems with dependable, durable performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 760308103307?
You can click on the BUY or RFQ button to purchase 760308103307 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 760308103307?
You can download the 760308103307 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 760308103307?
WURTH ELEKTRONIK
