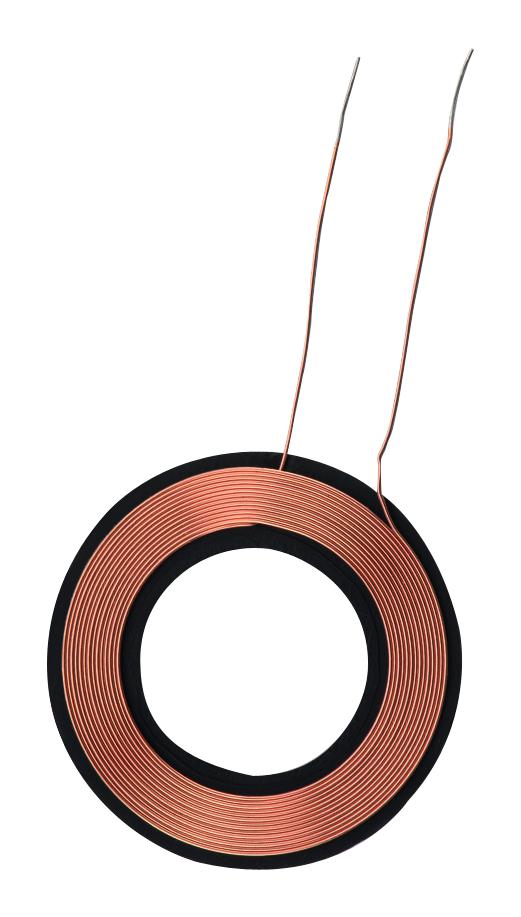

WURTH ELEKTRONIK 760308105309 Wireless Power Coil
The wireless power transfer receiver coil is designed for high-efficiency power transfer in industrial applications. Made by Wirth Elektronik, it features a robust construction with precise inductance and Q-factor ratings. Suitable for integration into wireless charging and power supply systems, it operates reliably within -20 to +105°C and complies with wave soldering standards. The coil's specifications include inductance values around 10.5 μH at 125 KHz, rated currents up to 1.5 A, and a self-resonant frequency of 18.5 MHz, ensuring optimal performance in demanding environments.
WURTH ELEKTRONIK 760308105309 Wireless Power Coil Specifications:
- Inductance: 10.5 μH at 125 KHz, 10% tolerance
- Q-Factor: 19 typ at 125 Hz/10 mA
- Rated Current: 1.5 A max
- Saturation Current: 3 A typical
- DC Resistance: 350 mΩ at 20°C, max 450 mΩ
- Self-Resonant Frequency: 18.5 MHz
- Operating Temperature Range: -20°C to +105°C
- Storage Conditions: <40°C, <75% RH
- Wave Soldering Profile: Suggested for Pb-Free and Sn-Pb assembly
- Dimensions and physical features conform to standard wave soldering specifications
Buy the Wirth Elektronik 760308105309 – Reliable Wireless Power Receiver for Industrial Applications
Enhance your industrial wireless charging systems with the reliable wireless power receiver coil from Wirth Elektronik. Designed for high performance, it features an inductance of 10.5 μH, rated current up to 1.5 A, and operates efficiently within -20 to +105°C. Built for demanding environments, this coil ensures consistent performance with optimal self-resonant frequency and low DC resistance. Ideal for customization in wireless power transfer solutions, purchase online today for high-quality, durable components that meet industrial standards and compliance requirements.
Order your Wirth Elektronik Series 760308105309 wireless power receiver coil today and ensure efficient, reliable power transfer for your industrial systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 760308105309?
You can click on the BUY or RFQ button to purchase 760308105309 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 760308105309?
You can download the 760308105309 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 760308105309?
WURTH ELEKTRONIK
