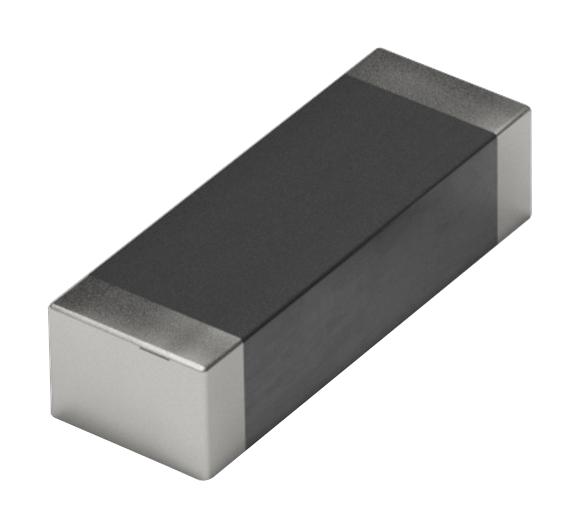

WURTH ELEKTRONIK 78279225101 EMI Suppression Bead
The WE-MPSA EMI Multilayer Power Suppression Bead is designed for high-current applications, offering effective electromagnetic interference (EMI) suppression. Constructed with RoHS, REACH, and halogen-free compliance, it features excellent impedance characteristics at 100 MHz and maximum impedance at 1200 MHz. Operating within -55°C to +125°C, it withstands high temperatures and has a moisture sensitivity level 1. It is suitable for use in electronic systems requiring reliable EMI filtering and high thermal stability, ensuring consistent performance in demanding environments.
WURTH ELEKTRONIK 78279225101 EMI Suppression Bead Specifications:
- Impedance @ 100 MHz: 100 Ω, max ±25%
- Maximum Impedance @ 1200 MHz: 160 Ω, max
- Rated Current: 10 A, max
- DC Resistance @ 20°C: 4 mΩ, max
- Operating Temperature Range: -55°C to +125°C
- Storage Conditions: < 40°C, < 75% RH
- Moisture Sensitivity Level: 1
- Compliance: RoHS, REACH, Halogen Free
- Dimensions are based on application specifics, ensuring stability under electrical and thermal stress.
- Designed for high-frequency EMI suppression, with peak current handling capabilities and thermal endurance.
Buy the Wurth Series EMI Multilayer Power Suppression Bead: 78279225101
Get the Wurth Series EMI Multilayer Power Suppression Bead online today and enhance your electronic systems with effective EMI filtering. Designed for high-current applications, this bead offers excellent impedance at high frequencies and operates reliably within a temperature range from -55°C to +125°C. Its compliance with RoHS, REACH, and halogen-free standards guarantees safety and environmental sustainability. Perfect for demanding environments, this suppression bead ensures stable performance, reduces electromagnetic interference, and supports your project’s reliability and compliance standards. Purchase now for fast delivery and technical support to optimize your electronic designs.
Order your Wurth Series EMI Multilayer Power Suppression Bead today and ensure reliable EMI filtering in your high-current electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 78279225101?
You can click on the BUY or RFQ button to purchase 78279225101 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 78279225101?
You can download the 78279225101 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 78279225101?
WURTH ELEKTRONIK
