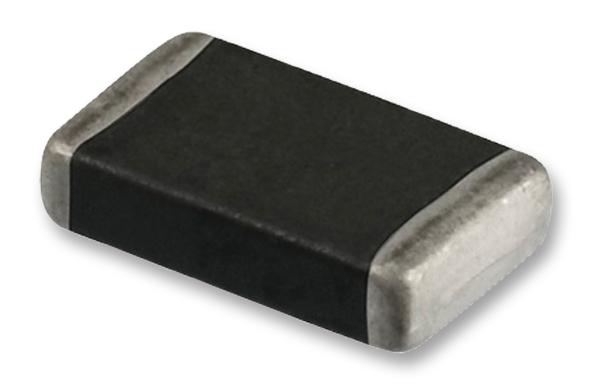

WURTH ELEKTRONIK 82356120100 ESD Suppressor
The 0603 ESD suppressor is a Surface-Mount Device (SMD) designed for effective electrostatic discharge protection. Compliant with RoHS standards, this component features a compact 0603 size, with electrical capabilities including a maximum working voltage of 12 V, a clamping voltage of 115 V at 6/20 waveform, and a capacitance of 10 pF. It withstands IEC61000-4-2 ESD levels of up to 15 kV air discharge, making it suitable for sensitive electronic circuits. Its small dimensions, mechanical durability, and environmental compliance make it ideal for minimizing ESD impacts in compact electronic designs.
WURTH ELEKTRONIK 82356120100 ESD Suppressor Specifications:
- Size: 0603 (W x L x T): 0.8 x 1.6 x 0.3 mm
- Capacitance: 10 pF ±30%
- Maximum Working Voltage: 12 V DC
- Clamping Voltage: 115 V at 6/20 waveform
- Leakage Current: measured at maximum operating voltage
- ESD Withstand Voltage: 15 kV (air discharge), 8 kV (contact discharge)
- Response Time: Less than 1 ns
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -50°C to +125°C
- Body Material: ZnO
- End Termination: Ag/Ni/Sn
- Compliance: RoHS, IEC61000-4-2 standard
Buy the WESURGE 82356120100 – Reliable ESD Suppressor for Industrial Applications
Enhance your device's protection with the compact and reliable ESD suppressor designed for modern electronics. This RoHS-compliant 0603 component features a maximum voltage of 12 V and withstands up to 15 kV ESD levels, ensuring your sensitive circuits are protected from electrostatic shocks. Its small size, fast response time, and sturdy end terminations make it ideal for surface-mount assembly. Minimize damage risks, improve device reliability, and streamline your manufacturing process by purchasing this high-performance ESD suppression device online today.
Order your WESURGE Series82356120100 ESD suppressor today and ensure robust electrostatic protection for your sensitive electronic circuits.
