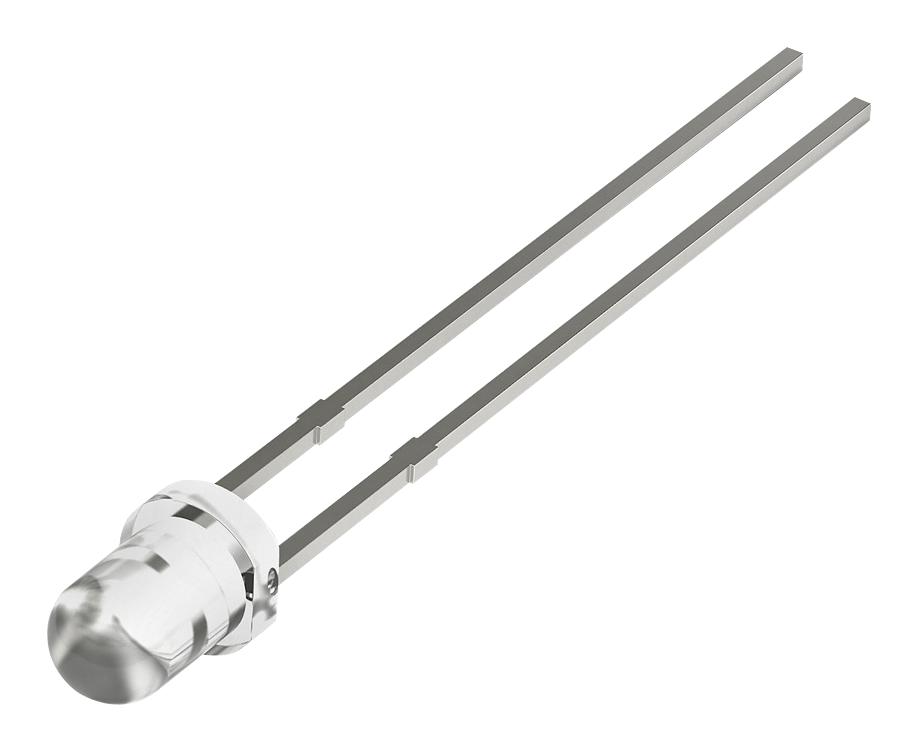

WURTH ELEKTRONIK 1540032NA3090 THT Phototransistor Round Waterclear
The Würth Elektronik 1540032NA3090 is a through-hole phototransistor designed for integration into general electronic equipment. Its waterclear lens provides excellent light transmission, while its compact 3mm size makes it suitable for space-constrained applications. This NPN phototransistor is characterized by its robust performance, operating within a temperature range of -40°C to +85°C. It is RoHS compliant and designed for reliable operation in a variety of electronic circuits. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 1540032NA3090 THT Phototransistor Round Waterclear Specifications:
- Dimensions_mm: 25.4 ±0.5
- Maximum_Dimensions_mm: 1.0
- Minimum_Dimensions_mm: 1.0
- Collector_Emitter_Voltage_V: 30
- Emitter_Collector_Voltage_V: 5
- Continuous_Collector_Current_mA: 20
- ESD_Threshold_Human_Body_V: 2000
- Operating_Temperature_Range_C: -40 up to +85
- Storage_Conditions_Packaging_C: < 40
- Storage_Conditions_Packaging_RH: < 75%
- Storage_Conditions_Single_Parts_C: -40 up to +85
- Moisture_Sensitivity_Level_MSL: 1
- Wavelength_of_Peak_Sensitivity_nm: 850
- Range_of_Spectral_Bandwidth_nm: 400-1100
- Collector_Current_ICE_P_mA: 5-15
- Collector_Emitter_Dark_Current_ICEO_Dark_nA: 300
- Viewing_Angle_Phi_0_degrees: 30
- Power_Dissipation_mW: 75
- Chip_Technology: Si
- Polarity: NPN
- Lens_Type: Waterclear
