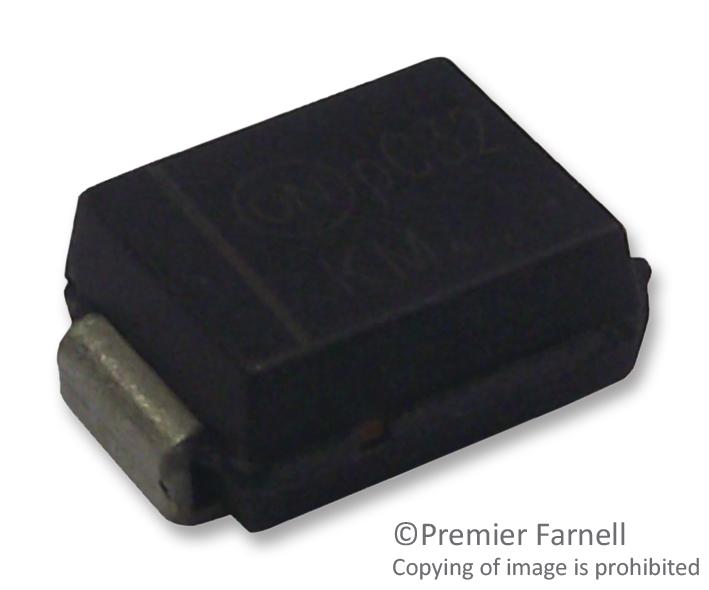

WURTH ELEKTRONIK 824520500 Power TVS Diode
The WE-TVSP Power TVS Diode series offers reliable transient voltage suppression with a peak pulse power rating of 10.0 kW and peak pulse current up to 100 A. Designed for high-energy surge protection, these diodes feature a breakdown voltage of 67 V and a clamping voltage of 9.2 V, ensuring circuit safety during voltage surges. Operating within -65°C to +150°C, they are suitable for various industrial and electronic applications, providing efficient protection against voltage spikes. Compliant with UL94-VO flammability standards, these high-performance devices are ideal for safeguarding sensitive components in demanding environments.
WURTH ELEKTRONIK 824520500 Power TVS Diode Specifications:
- Peak Power Rating: 10.0 kW
- Peak Pulse Current: 100 A
- Breakdown Voltage: 67 V ± 5%
- Clamping Voltage: 9.2 V max.
- Peak Pulse Power at 8/20 μs: 10.0 kW
- Maximum Repetitive Forward Surge Current: 120 A
- Typical Junction Capacitance: 10,000 pF
- Maximum Leakage Current: 800 μA
- Operating Temperature Range: -65°C to +150°C
- Storage Temperature: -40°C to +60°C
- UL Approval: UL497B: E478010
- Flammability Rating: UL94-VO
- Package Classification: Suitable for surface mount assembly
- Maximum Surface Temperature: +150°C
- Preheat Temperature Max: 200°C
- Reflow Temperature: 260°C for packages less than 1.6 mm thick
Buy the WIRTH ELECTRONIK Series Power TVS Diode: 824520500
Secure your electronic systems with the WIRTH ELECTRONIK Power TVS Diode. With maximum peak pulse power of 10.0 kW and a peak current of 100 A, it ensures excellent surge protection against voltage spikes. Operating efficiently within -65°C to +150°C, it’s perfect for safeguarding sensitive components in diverse industrial applications. Certified with UL94-VO flammability rating and UL approval, this surface-mount diode provides reliable, long-lasting protection. Purchase online today for high-performance surge suppression that enhances your system’s durability and safety.
Order your WIRTH ELECTRONIK Series Power TVS Diode 824520500 today and give your electronic projects the dependable surge protection they deserve.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 824520500?
You can click on the BUY or RFQ button to purchase 824520500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 824520500?
You can download the 824520500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 824520500?
WURTH ELEKTRONIK
