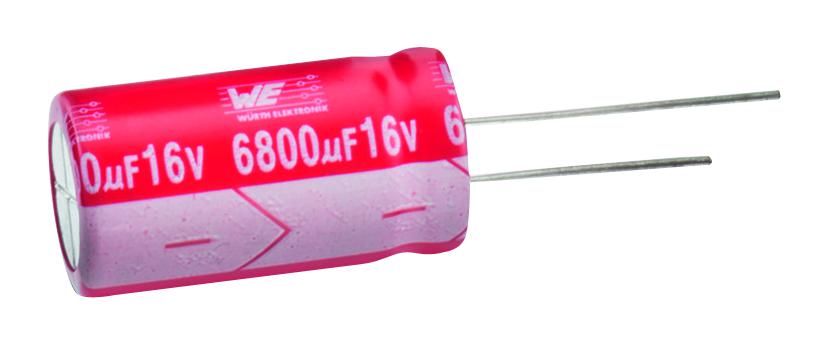

WURTH ELEKTRONIK 860020380027 Aluminum Electrolytic Capacitor
Würth Elektronik's WCAP-ATG5 aluminum electrolytic capacitors are designed for high-reliability power supply filtering and smoothing in electronic circuits. These capacitors feature a capacitance of 6800 μF rated at 16 V, operating effectively from -40°C to +105°C with a load life of 2000 hours at +105°C. They come with a vent for pressure relief, are RoHS & REACH compliant, and are suitable for industrial and electronic applications requiring stable electrical performance, high-temperature endurance, and superior safety standards.
WURTH ELEKTRONIK 860020380027 Aluminum Electrolytic Capacitor Specifications:
- Capacitance: 6800 μF
- Rated Voltage: 16 V (DC)
- Operating Temperature Range: -40°C to +105°C
- Load Life: 2000 hours at +105°C
- Seam: Vent for pressure relief
- Storage Conditions: 35°C, <45% RH
- Polarity: Positive and negative marked on the sleeve
- Soldering: Wave soldering recommended from the opposite side, temperature max 260°C
- Material: Aluminum casing with rubber seal, PVC sleeve
- Compliance: RoHS & REACH
Buy the Wurth Elektronik 860020380027 – Reliable Electrolytic Capacitors for Industrial Applications
Secure your project with the Würth Elektronik aluminum electrolytic capacitor rated at 16 V and 6800 μF. Known for durability, high temperature tolerance, and safety compliance, this component is ideal for industrial power supply filters. With a long load life of 2000 hours at +105°C and RoHS & REACH certification, it guarantees high performance in demanding applications. Easily order online and enhance your circuit reliability with this high-quality, pressure-relief vented capacitor designed for professional electronics and power systems.
Order your Würth Elektronik WCAP-ATG5 aluminum electrolytic capacitor today and ensure reliable power filtering in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 860020380027?
You can click on the BUY or RFQ button to purchase 860020380027 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 860020380027?
You can download the 860020380027 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 860020380027?
WURTH ELEKTRONIK
