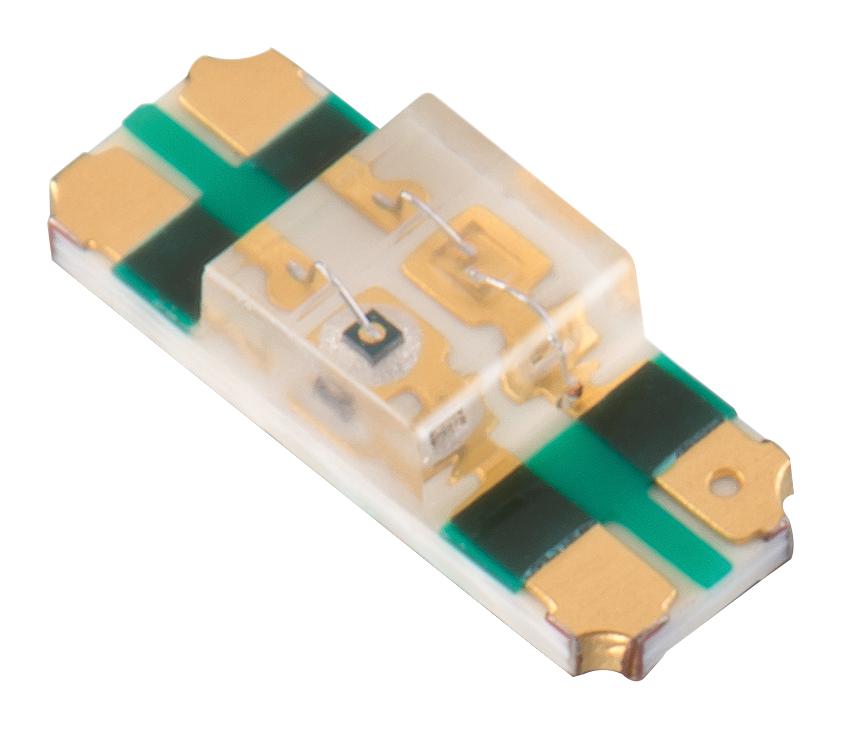

WURTH ELEKTRONIK 156125RG73000 Bi-color LED Module
The WL-SBRW SMD Bi-color Reverse is a high-quality surface-mount LED component emitting both red and green light with rectangular lenses, ideal for indication and signaling applications. It features AllnGaP and InGaN chip technology, with peak wavelengths at 632 nm for red and 520 nm for green, ensuring excellent color visibility. The module is designed for easy surface mounting, with recommended land pattern specifications and reliable electrical and optical properties. Operating within -40°C to +85°C, it supports moisture-sensitive applications with an MSL level 3 rating for enhanced reliability.
WURTH ELEKTRONIK 156125RG73000 Bi-color LED Module Specifications:
- Power Dissipation (Red): 48 mW
- Power Dissipation (Green): 78 mW
- Peak Forward Current duty/10@1kHz: 40 mA
- Continuous Forward Current: 20 mA
- Reverse Voltage: 5 V
- Human Body Model ESD: 1000 V
- Chip Technology: AllnGaP + InGaN
- Emitting Colors: Red & Green
- Lens Type: Rectangular
- Peak Wavelength (Red): 632 nm
- Peak Wavelength (Green): 520 nm
- Dominant Wavelength (Red): 624 nm
- Dominant Wavelength (Green): 525 nm
- Luminous Intensity (Red): 71–180 mcd
- Luminous Intensity (Green): 112–285 mcd
- Forward Voltage (Red): 2.24 V
- Forward Voltage (Green): 3.3–3.9 V
- Spectral Bandwidth (Red): 20 nm
- Spectral Bandwidth (Green): 30 nm
- Viewing Angle: 120°
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: MSL 3
- Package Type: SMD, rectangular lens
Buy the Wirth Elektronik Series WL-SBRW LED: 156125RG73000
Enhance your electronic devices with the Wirth Elektronik Series WL-SBRW Bi-color LED module, offering bright red and green light with wide viewing angles and proven durability. Designed for surface-mount applications, it operates efficiently within -40°C to +85°C, ensuring long-term performance in various environments. Its reliable electrical characteristics and compliant specifications make it ideal for indication, signaling, and user interface designs. Order online today to get quick delivery and incorporate this high-quality LED component into your next project for vibrant and dependable illumination.
Buy Wirth Elektronik WL-SBRW LED module now and experience unmatched reliability and vibrant bi-color illumination for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156125RG73000?
You can click on the BUY or RFQ button to purchase 156125RG73000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156125RG73000?
You can download the 156125RG73000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156125RG73000?
WURTH ELEKTRONIK
