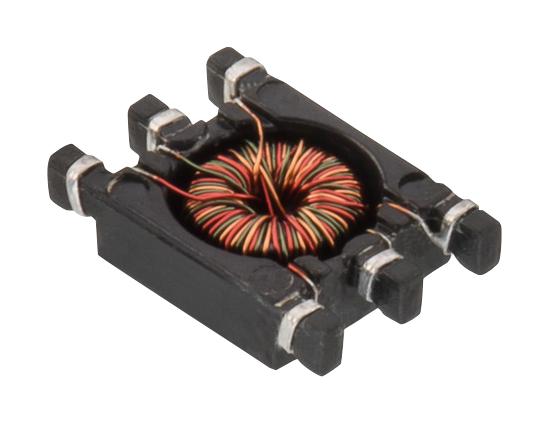

WURTH ELEKTRONIK 744252220 Line Filter
The WE-SL3 SMD Common Mode Line Filter from Wurth Elektronik is designed for high-frequency suppression in electronic circuits. It features a compact design with a maximum impedance of 1600 ohms and rated voltage of 80V. Suitable for board-level applications, it operates within a temperature range of -40°C to +125°C, with a maximum operating temperature of +125°C. The filter ensures reliable performance in EMC filtering, effectively reducing noise across common mode signals, making it ideal for industrial, automation, and communication equipment requiring compact, high-performance EMI suppression.
WURTH ELEKTRONIK 744252220 Line Filter Specifications:
- Number of windings N 2
- Rated Voltage Us 80 V
- Maximum Impedance Zmax 1600 ohms
- DC Resistance Rdc 0.14 ohms max
- Leakage Inductance 49 nH
- Insulation Test Voltage Ur 500 Vac max
- Operating Temperature -40°C to +125°C
- Storage Temperature -20°C to +40°C, 75% RH max
- Ambient Temperature -40°C to +85°C
- Mechanical dimensions compliant with IEC 60286-3:2013
- Reflow Profile: Preheat min 150°C, max 200°C, time 60-120 sec
- Package thickness < 1.6 mm, maximum reflow temperature 260°C
Buy the Wurth Elektronik Series WE-SL3 SMD Common Mode Line Filter: 744252220
Secure your electronics with the high-performance WE-SL3 line filter from Wurth Elektronik. Designed for EMC noise reduction in industrial, automation, and communication equipment, this compact SMD filter offers excellent impedance characteristics up to 80V and operates efficiently within a temperature range of -40°C to +125°C. Easy to install, it ensures reliable high-frequency noise suppression, helping meet EMC standards and improve device performance. Order online today to enhance your circuit protection and ensure signal integrity in demanding environments.
Buy Wurth Elektronik WE-SL3 line filter now and experience unmatched noise suppression and reliable EMC filtering for your industrial and communication devices.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744252220?
You can click on the BUY or RFQ button to purchase 744252220 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744252220?
You can download the 744252220 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744252220?
WURTH ELEKTRONIK
