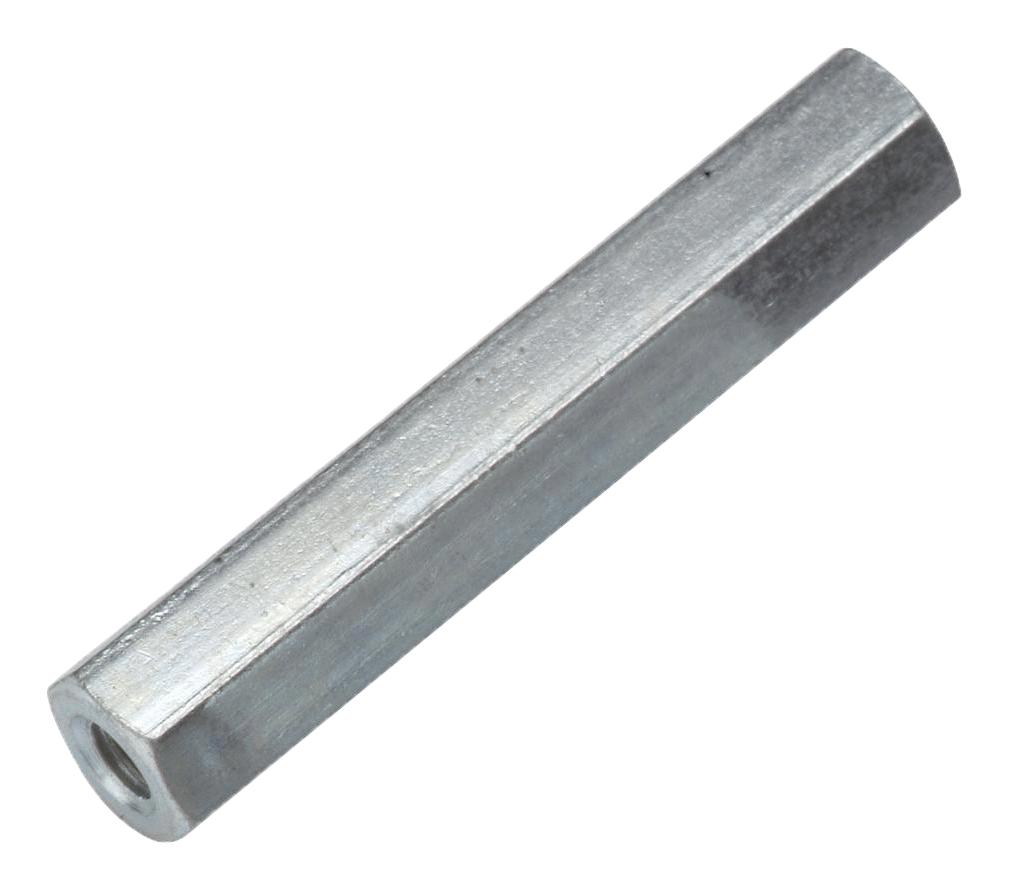

WURTH ELEKTRONIK 970500581 Steel Spacer Stud
The WURTH ELEKTRONIK 970500581 Steel Spacer Stud is a robust fastening solution designed for use in general electronic equipment. Constructed from steel with a gloss zinc surface finish, this spacer stud provides reliable support and spacing between components. It features an M5 thread and a length of 50mm, ensuring compatibility with a wide range of applications. Compliant with both RoHS and REACH standards, this component is suitable for environmentally conscious designs. Proper storage and handling are crucial to maintain its integrity, and it is not recommended for use in safety-critical applications without prior Würth Elektronik approval.
WURTH ELEKTRONIK 970500581 Steel Spacer Stud Specifications:
- Dimensions_L: 50 mm
- Dimensions_Ti: M5
- Dimensions_Tli: 10 mm
- Material: Steel
- Surface: Gloss zinc
- Certification: RoHS Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Length: 50 mm
- Inner Thread: M5
- Inner Thread Length: 10 mm
- Wrench: 8 mm
- General Tolerance: DIN ISO 2768-1m
- Description: WA-SSTII Steel Spacer Stud
- Order Code: 970500581
- Size/Type: with Metric, internal/internal
Buy the 970500581 WURTH ELEKTRONIK Steel Spacer Stud | myMectronic
Securely purchase the WURTH ELEKTRONIK 970500581 Steel Spacer Stud for your project today.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 970500581?
You can click on the BUY or RFQ button to purchase 970500581 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 970500581?
You can download the 970500581 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 970500581?
WURTH ELEKTRONIK
