WURTH ELEKTRONIK 61300411121 Pin Header
The 61300411121 is a 4-way, single-row, 2.54mm pitch pin header made with a PA6T insulator. It features gold-plated copper alloy contacts, a vertical orientation, and through-hole (THT) contact termination. This component is designed for general electronic equipment applications. It has a UL94V-0 flammability rating, stamped contacts, and complies with CECC 75 301-802. The pin header supports a current rating of 3A, maximum working voltage of 250VAC, and exhibits an insulator resistance greater than 1000MΩ, making it suitable for industrial use and wave soldering processes.
WURTH ELEKTRONIK 61300411121 Pin Header Specifications:
- Number of Pins: 4
- Pitch: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Contact Type: Stamped
- Insulator Material: PA6T
- Flammability Rating: UL94V-0
- Maximum Contact Resistance: 20 mΩ
- Insulation Resistance: >1000 MΩ
- Rated Current: 3A
- Maximum Working Voltage: 250 V AC
- Operating Temperature: -40°C to +105°C
- Soldering Type: Through-hole (THT)
- Compliance: CECC 75 301-802
- Assembly: Supports JEDEC lead-free wave soldering
- Certification: UL approval

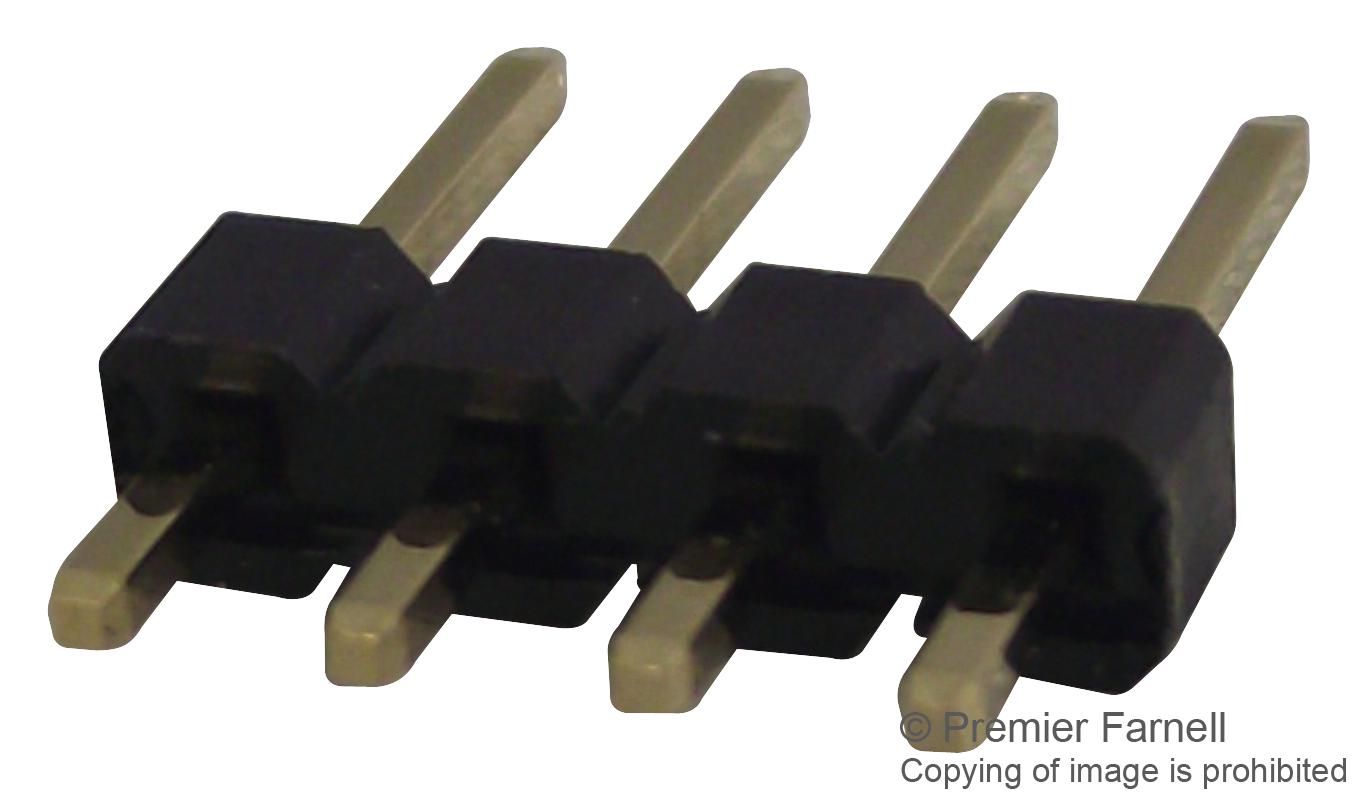

Buy the WURTH 61300411121 – Reliable Pin Header for Industrial Applications
Enhance your electronic assembly with the WURTH pin header, supporting 3A current, 2.54mm pitch, gold-plated contacts, and UL94V-0 flammability rating. Designed for general electronic equipment, it offers high durability, excellent electrical conductivity, and compatibility with wave soldering processes. Ideal for industrial and high-reliability applications, this component ensures secure and stable connections in your manufacturing and repair tasks. Order now online to benefit from quick delivery, genuine quality, and technical support for your projects.
Buy WURTH 61300411121 pin header now and experience unmatched reliability and performance in industrial electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61300411121?
You can click on the BUY or RFQ button to purchase 61300411121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61300411121?
You can download the 61300411121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61300411121?
WURTH ELEKTRONIK
