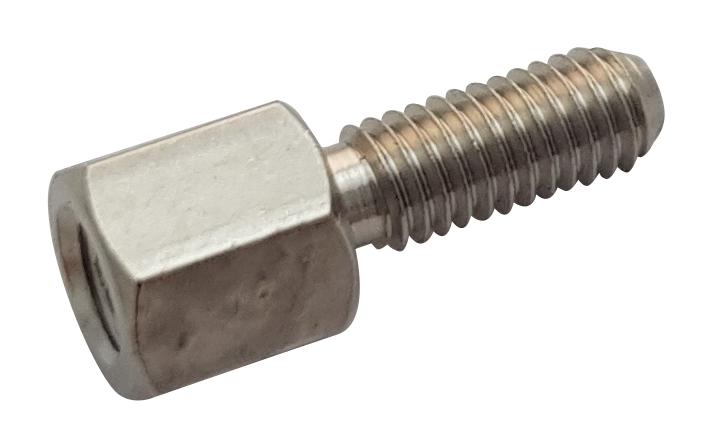

WURTH ELEKTRONIK 971050324 Brass Spacer Stud
The WURTH ELEKTRONIK 971050324 brass spacer stud is a critical component for providing mechanical support and electrical insulation in a wide range of electronic assemblies. Constructed from high-quality brass and finished with nickel plating, this stud offers excellent corrosion resistance and durability. It is designed for use in general electronic equipment and is compliant with both RoHS and REACH regulations, ensuring environmentally responsible usage. The stud's threaded design allows for easy and secure integration into printed circuit boards and other assemblies. Careful consideration of storage conditions and handling procedures is recommended to maintain optimal performance and prevent degradation. Würth Elektronik emphasizes the importance of customer evaluation for safety-critical applications.
WURTH ELEKTRONIK 971050324 Brass Spacer Stud Specifications:
- Dimensions_SW: mm
- Dimensions_A: mm
- Dimensions_L: mm
- Dimensions_Tlo: mm
- Material: Brass
- Surface: Nickel (Ni)
- Certification: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature: -55 up to +150 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level: 1
- Length_L: 5 mm
- Inner_Thread: M3
- Outer_Thread: M3
- Inner_Thread_Length_Tli: 2.5 mm
- Outer_Thread_Length_Tlo: 6 mm
- Wrench_SW: 5.5 mm
- Description: WA-SBRIE Brass Spacer Stud
- General_Tolerance: DIN ISO 2768-1m
- Order_Code: 971050324
Buy the 971050324 WURTH ELEKTRONIK Brass Spacer Stud | myMectronic
Purchase the WURTH ELEKTRONIK 971050324 brass spacer stud securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 971050324?
You can click on the BUY or RFQ button to purchase 971050324 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 971050324?
You can download the 971050324 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 971050324?
WURTH ELEKTRONIK
