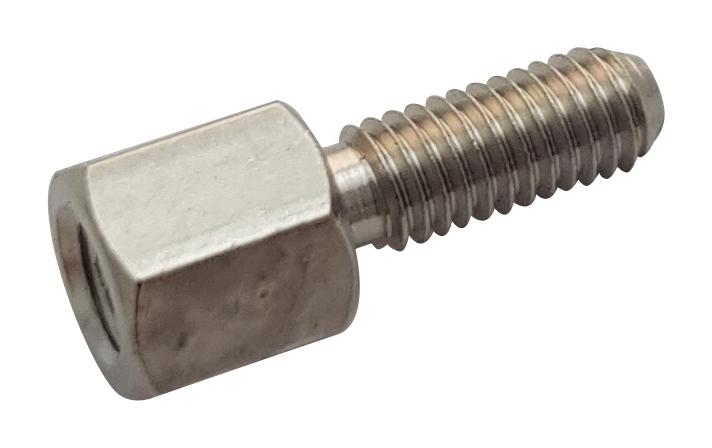

WURTH ELEKTRONIK 971050474 Brass Spacer Stud
The WURTH ELEKTRONIK 971050474 brass spacer stud is a critical component for achieving precise spacing and secure mounting in electronic assemblies. Constructed from brass and finished with nickel plating, it offers excellent corrosion resistance and electrical conductivity. The stud's metric thread design allows for easy integration into various applications, ensuring a stable and reliable connection. It is RoHS compliant and suitable for general electronic equipment, excluding those requiring exceptionally high safety or reliability standards. Proper storage and handling are essential to maintain component integrity, and customers should consult Würth Elektronik for approval before use in critical applications.
WURTH ELEKTRONIK 971050474 Brass Spacer Stud Specifications:
- Dimensions_SW: 7
- Dimensions_A: 5
- Length_L: 5
- Inner_Thread_Ti: M4
- Outer_Thread_To: M4
- Inner_Thread_Length_Tli: 3
- Outer_Thread_Length_Tlo: 8
- Operating_Temperature: -55 up to +150 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- Material: Brass
- Surface: Nickel (Ni)
- Certification: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- General_Tolerance: DIN ISO 2768-1m
- Description: WA-SBRIE Brass Spacer Stud
- Order_Code: 971050474
- Size_Type: with Metric Thread, internal/external
- Status: Valid
- Page: 1/3
