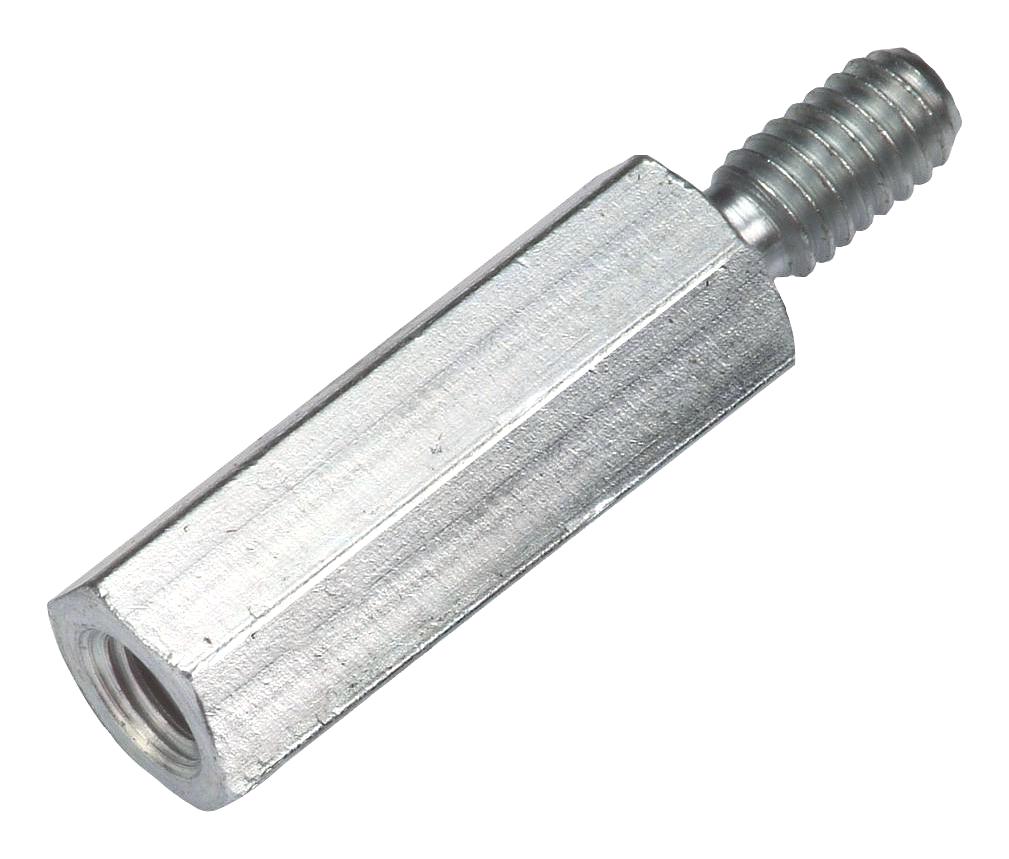

WURTH ELEKTRONIK 971060471 Steel Spacer Stud
The Würth Elektronik WA-SSTIE series steel spacer stud, part number 971060471, provides a robust solution for securing components in electronic assemblies. Constructed from steel with a gloss zinc finish, this spacer offers excellent corrosion resistance and mechanical strength. It is designed for general electronic equipment applications and is RoHS compliant, ensuring environmental responsibility. Proper torque application is crucial to prevent damage to the component and PCB. This spacer is ideal for applications where precise component spacing and secure mounting are required.
WURTH ELEKTRONIK 971060471 Steel Spacer Stud Specifications:
- Dimensions_A: A
- Material: Steel
- Surface: Gloss zinc
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level MSL: 1
- Length_L: 6 mm
- Inner Thread: M4
- Outer Thread: M4
- Inner Thread Length_Tli: 4 mm
- Outer Thread Length_Tlo: 8 mm
- Wrench_SW: 7
- Thread Type: MetricThread, internal/external
- General Tolerance: DIN ISO 2768-1m
