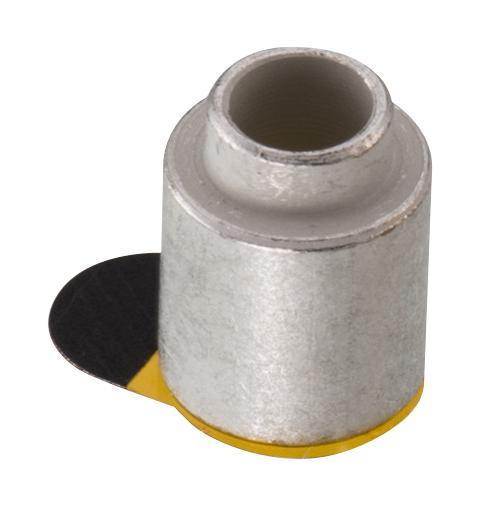

WURTH ELEKTRONIK 9774010982R SMT Steel Spacer with Through Hole
The WURTH ELEKTRONIK 9774010982R is a precision-engineered SMT steel spacer featuring a through hole for enhanced PCB mounting capabilities. Designed for general electronic equipment, it provides reliable support and spacing between components. The spacer is manufactured from steel, ensuring durability and strength. It is RoHS compliant and REACH conform, meeting stringent environmental standards. Suitable for a wide range of applications, this spacer contributes to the overall reliability and performance of electronic assemblies. Consider the flap of the Polyimide Tape during Pick and Place machine programming and PCB layout design.
WURTH ELEKTRONIK 9774010982R SMT Steel Spacer with Through Hole Specifications:
- Dimensions_A: 4.5
- Dimensions_O: 1.4
- Dimensions_L: 1
- Unit: mm
- Tolerance: ±0.1mm
- Material: Steel
- Surface: Tin
- Solder_Paste_Thickness: 150 µm
- Certification: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature: -55 up to +150 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level: 1
- Stencil_Suggestion_O: 5.48
- Stencil_Suggestion_O2: 9.27
- Length_L: 1
- General_Tolerance: DIN ISO 2768-1m
- Description: WA-SMST SMT Steel Spacer with through hole
- Würth_Elektronik_Address: Max-Eyth-Str. 1, 74638 Waldenburg, Germany
- Order_Code: 9774010982R
- Size_Type: Ø4.5
- Pull_of_force: 0.1 N - 1.3 N
- Tape_width: 24 mm
