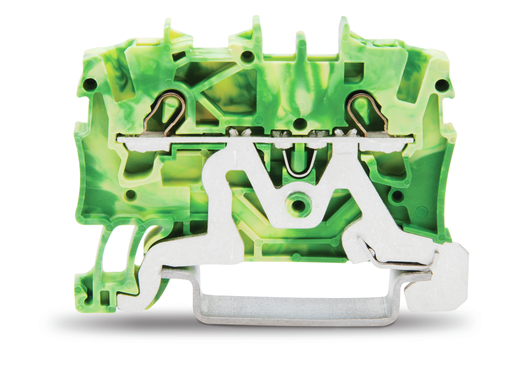

WAGO 20011207 2-Conductor Ground Terminal Block
The WAGO 2001-1207 is a robust 2-conductor ground terminal block specifically engineered for applications requiring reliable grounding and efficient space utilization within DIN rail systems. It utilizes WAGO’s Push-in CAGE CLAMP® connection technology, ensuring a secure and time-saving termination process. The block is suitable for Ex e II applications, indicating its suitability for hazardous environments. Constructed with durable Polyamide 66 (PA 66) insulation, it provides excellent electrical insulation and mechanical protection. This terminal block is a critical component in industrial control panels, power distribution systems, and other applications where reliable grounding is essential.
WAGO 20011207 2-Conductor Ground Terminal Block Specifications:
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross-section: 1,5 mm²
- Solid conductor: 0,25 … 2,5 mm² / 22 … 14 AWG
- Solid conductor; push-in termination: 0,75 … 2,5 mm² / 18 … 14 AWG
- Fine-stranded conductor: 0,25 … 2,5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with insulated ferrule: 0,75 … 1,5 mm² / 18 … 16 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0,75 … 1,5 mm² / 18 … 16 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
- Width: 4,2 mm / 0.165 inch
- Height from upper-edge of DIN-rail: 32,9 mm / 1.295 inch
- Depth: 50,8 mm / 2 inch
- Design: horizontal
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: green-yellow
- Insulation material: Polyamide 66 (PA 66)
- Fire load: 0.074 MJ
- Weight: 6.7 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332997317
- Customs tariff number: 85369010000
