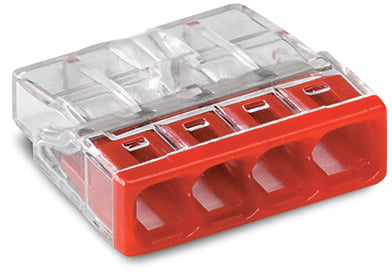

WAGO 2273204 Compact Splicing Connector
The WAGO 2273-204 compact splicing connector offers a convenient and efficient solution for connecting solid conductors. Its compact design allows for easy integration into various applications, while the push-in termination simplifies wiring processes. The transparent housing provides a visual indication of proper conductor insertion, ensuring reliable connections. Suitable for applications requiring robust and space-saving connectivity, the 2273-204 is a versatile choice for industrial and commercial settings. Aluminum conductors can be terminated with the use of WAGO “Alu-Plus” Contact Paste.
WAGO 2273204 Compact Splicing Connector Specifications:
- conductor_size_range: 0.5 … 2.5 mm² (18 … 14 AWG)
- number_of_conductors: 4
- housing_color: transparent
- cover_color: red
- operating_temperature_max: 60 °C
- rated_voltage_II_2: 450 V
- rated_impulse_voltage_II_2: 4 kV
- rated_current: 24 A
- connection_technology: PUSH WIRE®
- actuation_type: Push-in
- connectable_conductor_materials: Copper, Aluminum
- strip_length: 11 mm / 0.43 inch
- number_of_connection_points: 4
- number_of_potentials: 1
- wiring_type: Side-entry wiring
- width: 18 mm / 0.709 inch
- height: 5.8 mm / 0.228 inch
- depth: 16.7 mm / 0.657 inch
- flammability_class_UL94: V2
- fire_load: 0.025 MJ
- weight: 1.3 g
- continuous_operating_temperature: 105 °C
- T_marking_EN_60998: T60
- packaging_type: BOX
- country_of_origin: DE
- GTIN: 4050821027867
- customs_tariff_no: 85369010000
Buy the 2273-204 WAGO Compact Splicing Connector | myMectronic
Purchase the WAGO 2273-204 splicing connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 2273204?
You can click on the BUY or RFQ button to purchase 2273204 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 2273204?
You can download the 2273204 datasheet or visit the WAGO website for support.
Who is the manufacturer of 2273204?
WAGO
