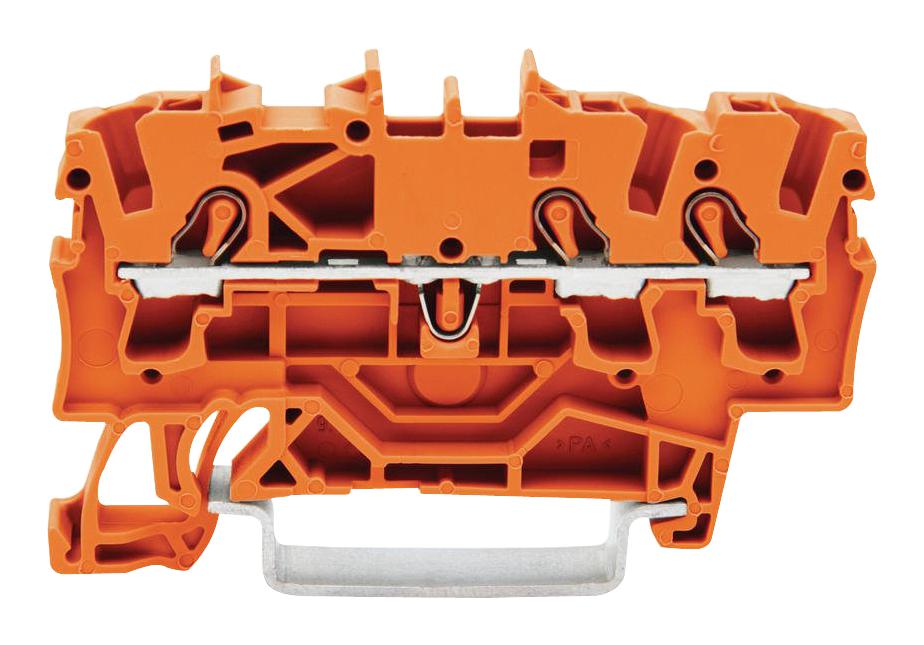

WAGO 20021302 3-conductor Terminal Block
The WAGO 2002-1302 is a versatile 3-conductor through terminal block ideal for various industrial applications, particularly those requiring Ex safety. Its Push-in CAGE CLAMP® technology ensures quick and reliable connections, while the side and center marking options simplify identification and maintenance. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block offers a robust and space-efficient solution for power distribution and signal transmission. It is suitable for applications requiring high voltage and current capacity, and is certified to meet various international standards including UL, CSA, and Ex approvals.
WAGO 20021302 3-conductor Terminal Block Specifications:
- Electrical data: Subject to changes. Refer to product documentation.
- Nominal voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 24 A
- Rated current 2: 32 A
- Ratings legend: (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 20 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 22 A
- Rated current (Ex e II) with jumper: 20 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross-section: 2,5 mm²
- Solid conductor: 0,25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0,75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0,25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 1 … 2,5 mm² / 18 … 12 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2,5 mm² / 18 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Width: 5,2 mm / 0.205 inch
- Height from upper-edge of DIN-rail: 32,9 mm / 1.295 inch
- Depth: 59,2 mm / 2.33 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: orange
- Insulation material: Polyamide 66 (PA 66)
- Fire load: 0.104 MJ
- Weight: 5.9 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332999267
- Customs tariff number: 85369010000
