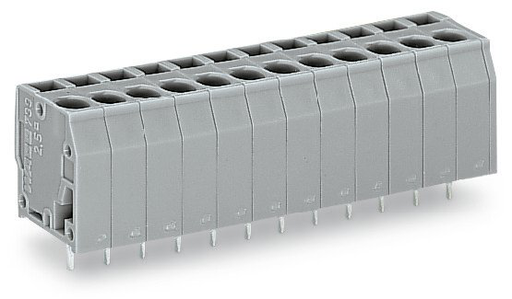

WAGO 739112 12-Pole PCB Terminal Block
The WAGO 739-112 is a 12-pole PCB terminal block designed for efficient and reliable power distribution in various industrial applications. Its CAGE CLAMP® connection ensures a secure and vibration-resistant connection, simplifying installation and maintenance. The vertical conductor entry minimizes space requirements, making it ideal for densely populated PCBs. Rated for 24A and 320V, this terminal block is suitable for a wide range of power and signal transmission applications. It is also compliant with various international standards and approvals, ensuring safety and performance.
WAGO 739112 12-Pole PCB Terminal Block Specifications:
- Rated Voltage (III/3): 320 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Voltage (III/2): 320 V
- Rated Surge Voltage (III/2): 4 kV
- Rated Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 24 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 20 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 12 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor w/ Ferrule Size: 0.25 … 1.5 mm²
- Fine-Stranded Conductor w/ Uninsulated Ferrule Size: 0.25 … 2.5 mm²
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pin Spacing: 5 mm / 0.197 inch
- Width: 61.5 mm / 2.421 inch
- Height: 19 mm / 0.748 inch
- Height from Surface: 15.8 mm / 0.622 inch
- Depth: 14.3 mm / 0.563 inch
- Solder Pin Length: 3.2 mm
- Solder Pin Dimensions: 0.8 x 1.2 mm
- Drilled Hole Diameter: 1.6 (+0.1) mm
- Material (Insulation): Polyamide (PA66)
- Flammability Class: V0
- Weight: 13.8 g
- Limit Temperature Range: -60 … +105 °C
Buy the 739-112 WAGO 12-Pole PCB Terminal Block | myMectronic
Purchase the WAGO 739-112 PCB terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 739112?
You can click on the BUY or RFQ button to purchase 739112 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 739112?
You can download the 739112 datasheet or visit the WAGO website for support.
Who is the manufacturer of 739112?
WAGO
