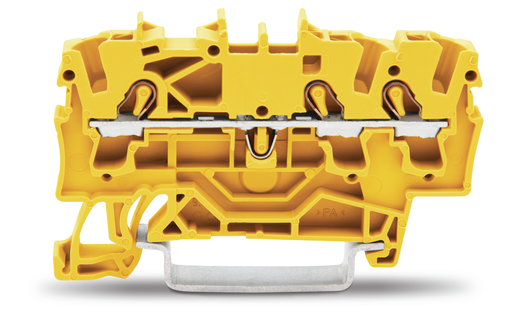

WAGO 20021306 3-conductor Terminal Block
The WAGO 2002-1306 is a 3-conductor through terminal block designed for reliable electrical connections in various industrial environments, particularly those requiring Ex e II certification. Its Pushin CAGE CLAMP® mechanism simplifies wiring and ensures a secure hold on conductors. The terminal block is suitable for mounting on DIN rails 35 x 15 and 35 x 7.5, making it versatile for different panel configurations. It's ideal for applications needing robust and safe electrical connections, such as industrial automation, power distribution, and control systems.
WAGO 20021306 3-conductor Terminal Block Specifications:
- Electrical Data: Subject to changes. Refer to product documentation.
- Nominal Voltage (III/3): 800 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Current: 24 A
- Rated Current 2: 32 A
- Ratings per UL (Use Group B): 600 V
- Rated Current UL (Use Group B): 20 A
- Ratings per CSA (Use Group B): 600 V
- Rated Current CSA (Use Group B): 20 A
- Rated Voltage EN (Ex e II): 550 V
- Rated Current (Ex e II): 22 A
- Rated Current (Ex e II) with Jumper: 20 A
- Connection Technology: Push-in CAGE CLAMP®
- Nominal Cross-section: 2.5 mm²
- Solid Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded Conductor with Insulated Ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded Conductor with Ferrule (Push-in): 1 … 2.5 mm² / 18 … 14 AWG
- Strip Length: 10 … 12 mm / 0.39 … 0.47 inch
- Number of Connection Points: 2
- Number of Potentials: 1
- Number of Levels: 1
- Wiring Type: Front-entry wiring
- Number of Jumper Slots: 2
- Width: 5.2 mm / 0.205 inch
- Height: 59.2 mm / 2.33 inch
- Depth from Upper Edge of DIN-rail: 32.9 mm / 1.295 inch
- Material: Polyamide (PA66)
- Color: yellow
- Fire Load: 0.13 MJ
- Weight: 6.2 g
- Product Group: 22 (TOPJOB S)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918081535
- Customs Tariff Number: 85369010000
