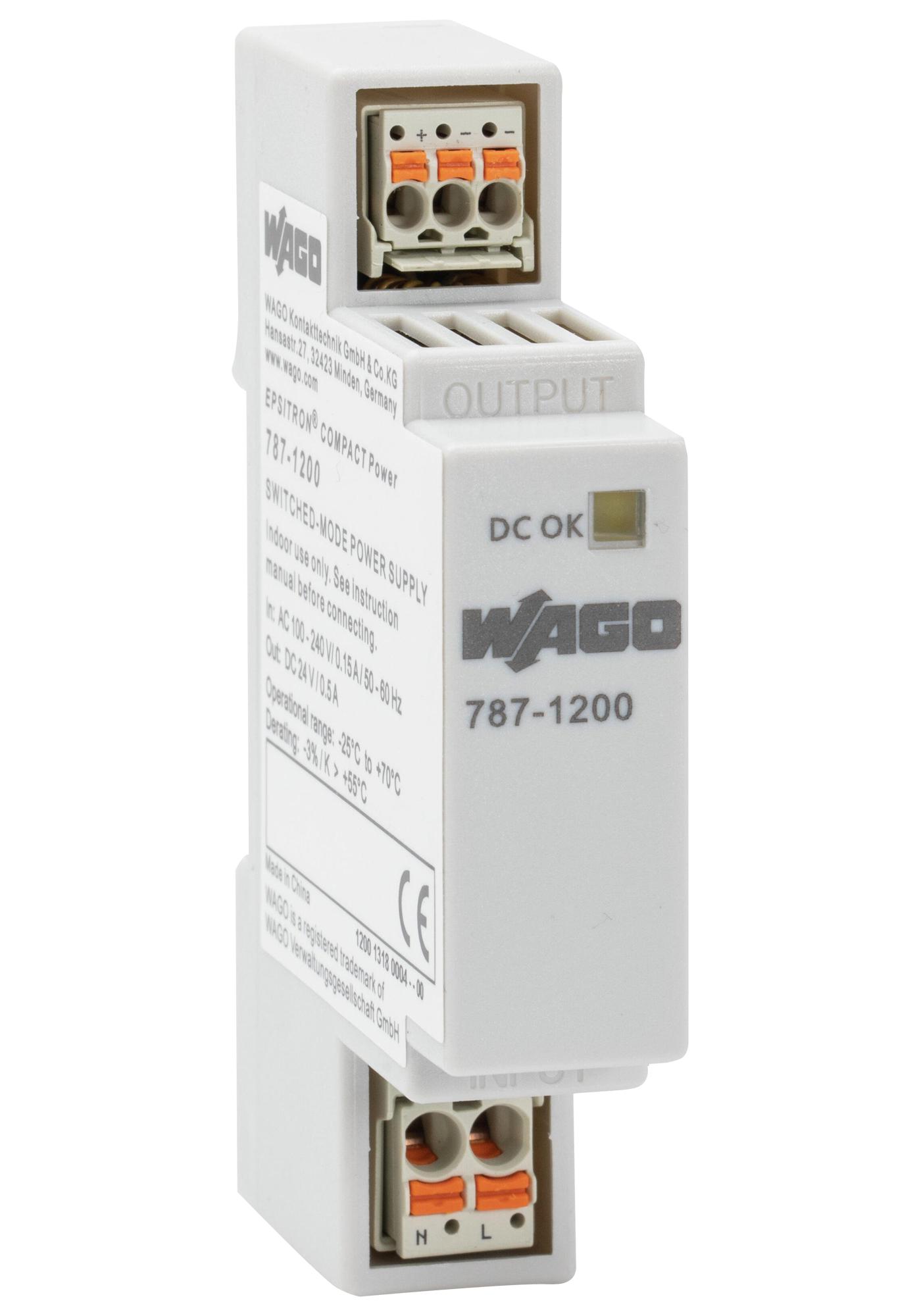

WAGO 7871200 Power Supply
This compact 1-phase switch-mode power supply features a stepped profile ideal for distribution boards and boxes. It includes pluggable picoMAX® connection technology for easy, tool-free installation. Supporting series operation, it provides electrically isolated 24 VDC output (SELV) in accordance with EN 62368, UL 62368, EN 60335-1, and PELV standards as per EN 60204. The power supply operates on a wide input voltage range of AC 90...264V, with a power output of 12W and an efficiency of up to 83%. It is DIN-rail mountable, protected against overcurrent and short circuits, ensuring reliable operation in industrial environments.
WAGO 7871200 Power Supply Specifications:
- Input Voltage Range: AC 90...264V, Nominal AC 100...240V
- Input Frequency: 47...63 Hz
- Input Current: 0.27 A (100 VAC)
- Nominal Output Voltage: 24 VDC
- Output Current: 0.5 A
- Output Power: 12 W
- Efficiency: up to 83%
- Ripple: 100 mV (peak-to-peak)
- Overload Behavior: Shutdown and automatic restart
- Protection: Short-circuit, open-circuit, overvoltage (31 VDC)
- Isolation Voltage: 4.242 kV
- Mounting: DIN-35 rail (EN 60715), screw mount
- Dimensions: Width 18mm, Height 90mm, Depth 55mm, Depth from DIN-rail 52.5mm
- Weight: 63g
- Environmental Ratings: Operational -25°C to +70°C, Storage -40°C to +85°C, Relative Humidity 20-90%, Pollution Degree 2
- Standards: EN 61204-3, EN 60335-1, EN 62368, UL 62368, UL 508
- Protection Class: IP20
- Certifications: UL, UL508, UL62368
Buy the WAGO Series COMPACT Power Supply: 7871200
Order the WAGO 7871200 compact power supply online today. Designed for industrial applications, it provides a stable 24 VDC output with high efficiency, robust protection, and easy DIN-rail installation. Its pluggable picoMAX connection technology simplifies setup, while series operation enables scalable power solutions. Suitable for distribution boards and boxes, this power supply meets strict safety and environmental standards, ensuring reliable operation in demanding environments. Enhance your automation system with this space-efficient, durable power unit available now for fast delivery.
Buy WAGO 7871200 compact power supply now and experience reliable, space-saving 24 VDC power for industrial automation and distribution panels.
Frequently Asked Questions
Where can I buy WAGO 7871200?
You can click on the BUY or RFQ button to purchase 7871200 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 7871200?
You can download the 7871200 datasheet or visit the WAGO website for support.
Who is the manufacturer of 7871200?
WAGO
