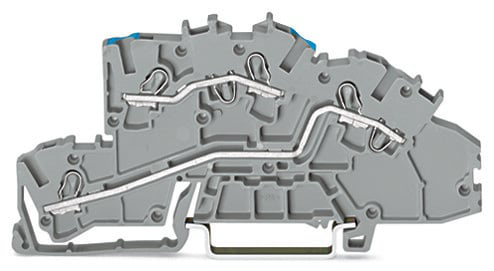

WAGO 20037649 Multilevel Installation Terminal Block
The WAGO 2003-7649 multilevel installation terminal block provides a compact and organized solution for connecting multiple conductors in industrial applications. Its Pushin CAGE CLAMP® connection technology simplifies wiring and ensures reliable connections. The block is suitable for use in control cabinets, power distribution systems, and other electrical installations where space is limited and efficient wiring is essential. It supports a wide range of conductor sizes and materials, offering flexibility in design and implementation. The block's robust construction and high-quality materials ensure long-term reliability and performance in demanding environments.
WAGO 20037649 Multilevel Installation Terminal Block Specifications:
- Nominal Voltage (III/3): 400 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 24 A
- Rated Current 2: 32 A
- Connection Technology: Push-in CAGE CLAMP®
- Actuation Type: Push-in
- Connectable Conductor Materials: Copper
- Nominal Cross-Section: 2.5 mm²
- Solid Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid Conductor; Push-in Termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-Stranded Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-Stranded Conductor; with Insulated Ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-Stranded Conductor; with Ferrule; Push-in Termination: 1 … 2.5 mm² / 18 … 14 AWG
- Strip Length: 10 … 12 mm / 0.39 … 0.47 inch
- Total Number of Connection Points: 4
- Total Number of Potentials: 2
- Number of Levels: 2
- Wiring Type: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height: 96 mm / 3.78 inch
- Depth from Upper Edge of DIN-rail: 42.3 mm / 1.665 inch
- Potential Marking: N/L
- Design: angled
- Mounting Type: DIN-35 rail
- Marking Level: Center/side marking
- Insulation Material: Polyamide (PA66)
- Fire Load: 0.24 MJ
- Weight: 13.6 g
- Product Group: 22 (TOPJOB S)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918925624
- Customs Tariff Number: 85369010000
