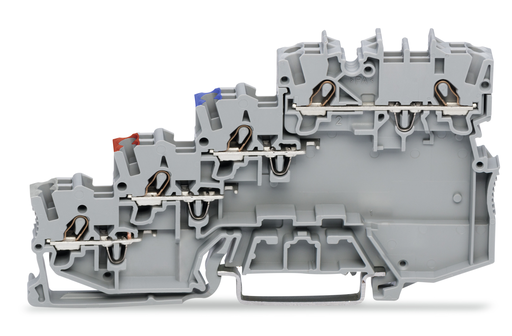

WAGO 20005410 4-conductor sensor terminal block
The WAGO 2000-5410 is a versatile 4-conductor sensor terminal block ideal for industrial automation and sensor integration. Its double spacing per pole allows for maximized connectivity, enabling the connection of multiple sensors and power supplies in a compact space. The terminal block utilizes the Push-in CAGE CLAMP® connection technology for secure and reliable connections. It is suitable for a wide range of applications requiring robust and efficient sensor connectivity, and is designed to simplify wiring and reduce installation time.
WAGO 20005410 4-conductor sensor terminal block Specifications:
- Nominal voltage (III/3): 250 V
- Rated surge voltage (III/3): 4 kV
- Rated current: 13.5 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 15 A
- Rated voltage CSA (Use Group C): 300 V
- Rated current CSA (Use Group C): 10 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 1 mm²
- Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 10
- Total number of potentials: 5
- Number of levels: 4
- Wiring type: Front-entry wiring
- Number of jumper slots: 5
- Width: 7 mm / 0.276 inch
- Height: 97.3 mm / 3.831 inch
- Depth from upper edge of DIN-rail: 52.4 mm / 2.063 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.313 MJ
- Weight: 17.4 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143442244
- Customs tariff number: 85369010000
