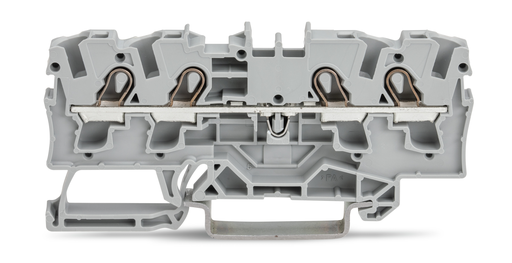

WAGO 20041401 4-Conductor Terminal Block
The WAGO 2004-1401 is a rail-mounted terminal block designed for reliable connections in industrial environments. Its front-entry design simplifies wiring, while the CAGE CLAMP® connection ensures secure and vibration-resistant terminations. This terminal block is suitable for Ex e applications and is ideal for use in control cabinets and distribution panels where space is limited and reliable connections are critical. It supports a wide range of wire gauges and voltages, making it versatile for various applications.
WAGO 20041401 4-Conductor Terminal Block Specifications:
- Product Description: 4-Conductor Through Terminal Block; Centre-/ Lateral Marking; Suitable for Ex e Applications; for DIN 35 rail; Front-Entry; CAGE CLAMP®S Connection
- Packing Unit: 50 pieces
- Product Group: 22 (TOPJOB S RAIL-MOUNTED TERMINAL BLOCKS)
- Cross Section From (mm²): 0,5 mm²
- Cross Section To (mm²): 4 mm²
- Cross Section From (AWG): 20 AWG
- Cross Section To (AWG): 10 AWG
- Connection Method: CONTACT CAGE CLAMP®CONNECTION
- Wiring Method: e+f
- Measured Voltage (EN): 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity (EN): 32 A
- Weight: 10,517 g
- Color: grey
- Wiring Type: Front-entry
- No. of Connection Points: 4
- No. of Potentials: 1
- Height: 33 mm
- Height (in): 1,299 in
- Width: 6,2 mm
- Width (in): 0,244 in
- Depth: 79 mm
- Depth (in): 3,11 in
- Strip Length From: 11 mm
- Strip Length To: 13 mm
- Strip Length (in): 0,47 in
- Admission Office - Approval No.: ABS - 05-HG476175/1-PDA
- Voltage (V): 600
- Current (A): 30
- Cross Section (mm²): 0,5-6
- Approval No.: E45172
- Cross Section (AWG): 20-10
Buy the 2004-1401 WAGO 4-Conductor Terminal Block | myMectronic
Purchase the WAGO 2004-1401 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20041401?
You can click on the BUY or RFQ button to purchase 20041401 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20041401?
You can download the 20041401 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20041401?
WAGO
