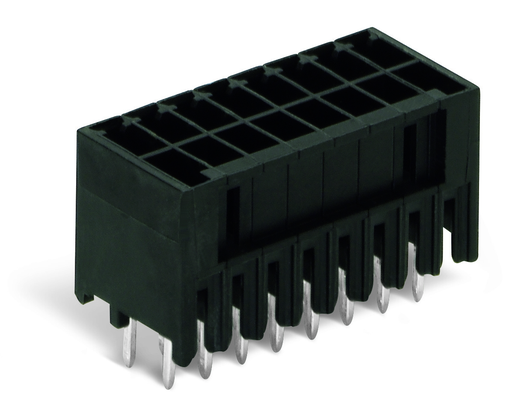

WAGO 7131409 18-pole Male Header
The WAGO 713-1409 is a robust 18-pole male header specifically engineered for PCB applications. Its 3.5mm pin spacing and straight solder pin configuration facilitate easy integration into various circuit designs. The header's insulation material is optimized for lead-free reflow soldering, a common requirement in modern electronics manufacturing. A key feature is the 100% protection against mismating, which significantly reduces the risk of connection errors and improves overall system reliability. Coding options are available to further enhance identification and prevent incorrect mating. This header is suitable for a wide range of industrial applications where secure and reliable connections are paramount.
WAGO 7131409 18-pole Male Header Specifications:
- Pin Spacing: 3.5 mm
- Number of Poles: 18
- Solder Pin Length: 3.8 mm
- Solder Pin Dimensions: 0.8 x 0.8 mm
- Width: 33 mm
- Height: 17.3 mm
- Height from Surface: 13.5 mm
- Depth: 13.3 mm
- Drilled Hole Diameter: 1.2 mm
- Nominal Voltage (III/3): 80 V
- Rated Surge Voltage (III/3): 2.5 kV
- Rated Voltage (III/2): 160 V
- Rated Surge Voltage (III/2): 2.5 kV
- Rated Current: 10 A
- Rated Voltage UL (Use Group B): 150 V
- Rated Current UL (Use Group B): 10 A
- Rated Voltage UL (Use Group C): 50 V
- Rated Current UL (Use Group C): 10 A
- Rated Voltage CSA (Use Group B): 150 V
- Rated Current CSA (Use Group B): 12 A
- Material Group: I
- Insulation Material: Polyphthalamide (PPA GF)
- Flammability Class: V0
- Contact Material: Electrolytic Copper (E Cu)
- Contact Plating: tin-plated
- Fire Load: 0.098 MJ
- Weight: 4.7 g
- Mismating Protection: Yes
- Mating Direction: 90 °
- Number of Levels: 2
- Total Number of Potentials: 18
- Number of Connection Types: 1
- Limit Temperature Range: -60 … +100 °C
- Packaging Type: BOX
- Country of Origin: PL
- GTIN: 4045454700041
- Customs Tariff Number: 85366990990
