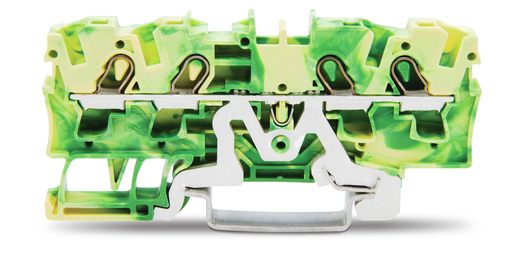

WAGO 20041407 4-conductor Ground Terminal Block
The WAGO 2004-1407 is a robust and reliable 4-conductor ground terminal block designed for use in demanding industrial environments, particularly those requiring Ex e II certification. Utilizing WAGO’s Push-in CAGE CLAMP® connection technology, it ensures secure and efficient wire termination. The block is suitable for mounting on standard DIN rails (35 x 15 and 35 x 7.5), and features side and center marking capabilities for clear identification. Its polyamide 66 (PA 66) construction provides excellent insulation and durability, making it ideal for a wide range of applications including power distribution, control systems, and machinery.
WAGO 20041407 4-conductor Ground Terminal Block Specifications:
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Nominal cross section: 4 mm²
- Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Solid conductor, push-in termination: 1.5 … 6 mm² / 14 … 10 AWG
- Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1.5 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1.5 … 4 mm² / 18 … 12 AWG
- Strip length: 11 … 13 mm / 0.43 … 0.51 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Number of jumper slots: 2
- Width: 6.2 mm / 0.244 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 78.7 mm / 3.098 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.174 MJ
- Weight: 16.7 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332071833
- Customs Tariff No.: 85369010000
- Connectable conductor materials: Copper
