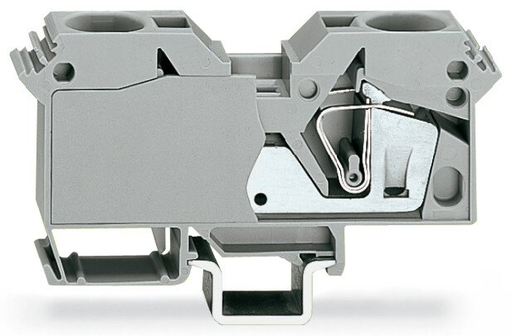

WAGO 285601 2-Conductor Terminal Block
The WAGO 285-601 is a robust and reliable 2-conductor terminal block specifically designed for rail-mounted applications. Its cage clamp connection ensures a secure and vibration-resistant termination of conductors, while the front-entry design simplifies wiring and maintenance. Suitable for various industrial environments, this terminal block offers excellent performance and durability. It is ideal for applications requiring a compact and efficient connection solution on DIN rails.
WAGO 285601 2-Conductor Terminal Block Specifications:
- Product Description: 2-Conductor Through Terminal Block; Lateral Marking; for DIN 35 rail; Front-Entry; Cage Clamp®Connection; Horizontal Type
- Packing Unit: 15 pieces
- Cross Section From (mm²): 6
- Cross Section To (mm²): 35
- Cross Section From (AWG): 10
- Cross Section To (AWG): 2
- Connection Method: Cage Clamp®Connection
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 125 A
- Weight: 131,446 g
- Color: grey
- Wiring Type: Front-Entry
- No. of Connection Points: 2
- No. of Potentials: 1
- Height: 52,5 mm
- Height (in): 2.07 in
- Width: 16 mm
- Width (in): 0.63 in
- Depth: 115,5 mm
- Depth (in): 4.55 in
- Strip Length From: 16 mm
- Strip Length To: 16 mm
- Strip Length: 23 mm
- Admission Office: ABS, BBJ, BV, CCA, CSA, DNV, GL, KEMA, KR, LR, PRS, RMR, UL, UR
- Approval No.: 05-HG476175/1-PDA, B/12/700/03, 07436/C0, NL5643, 154112-1327714, E7570, 17295-00HH, 2076789.01, HMB05880-EL001, 91/20112(E5), TE/1718/880590/08, 11130002, E45172
- Voltage (V): 800
- Current (A): 125, 140, 115
- Cross Section (mm²): 35, 8-2, 10-2
