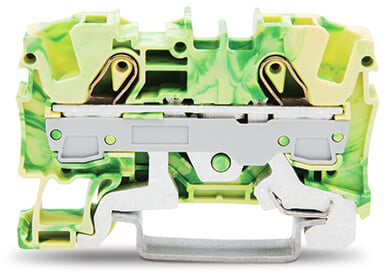

WAGO 20061207 2-conductor Ground Terminal Block
The WAGO 2006-1207 is a robust and reliable 2-conductor ground terminal block specifically engineered for use in hazardous environments (Ex e II). Its Push-in CAGE CLAMP® connection technology ensures quick and secure terminations, while the side and center marking options simplify identification and maintenance. Designed for compatibility with both 35 x 15 and 35 x 7.5 mm DIN rails, this terminal block is a versatile solution for a wide range of industrial applications. It supports a nominal cross-section of 6 mm² and accommodates various conductor types, including solid and stranded conductors with insulated ferrules.
WAGO 20061207 2-conductor Ground Terminal Block Specifications:
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross-section: 6 mm²
- Solid conductor: 0,5 … 10 mm² / 20 … 8 AWG
- Solid conductor; push-in termination: 2,5 … 10 mm² / 14 … 8 AWG
- Fine-stranded conductor: 0,5 … 10 mm² / 20 … 8 AWG
- Fine-stranded conductor; with insulated ferrule: 2,5 … 6 mm² / 16 … 10 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 2,5 … 6 mm² / 16 … 10 AWG
- Strip length: 13 … 15 mm / 0.51 … 0.59 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Number of jumper slots: 2
- Width: 7,5 mm / 0.295 inch
- Height from upper-edge of DIN-rail: 32,9 mm / 1.295 inch
- Depth: 57,5 mm / 2.264 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: green-yellow
- Insulation material: Polyamide 66 (PA 66)
- Fire load: 0.15 MJ
- Weight: 17.2 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332999670
- Customs tariff number: 85369010000
