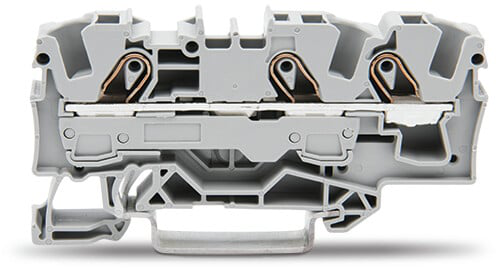

WAGO 20061301 3-Conductor Terminal Block
The WAGO 2006-1301 is a versatile 3-conductor through terminal block ideal for industrial automation and control systems. Designed for DIN 35 rail mounting, it utilizes a front-entry wiring method and a reliable CAGE CLAMP® connection to ensure secure and consistent terminations. The block is rated for high voltage (800V) and current (41A), making it suitable for demanding applications. It is also approved by various agencies including ABS, CSA, UL, and IECEx, broadening its applicability across diverse industrial environments. The center/lateral marking simplifies identification and organization within the control panel.
WAGO 20061301 3-Conductor Terminal Block Specifications:
- product_group: 22 (TOPJOB S RAIL-MOUNTED TERMINAL BLOCKS)
- cross_section_from_mm2: 0,5 mm²
- cross_section_to_mm2_1: 6 mm²
- cross_section_from_awg: 20 AWG
- cross_section_to_awg: 8 AWG
- connection_method: CONTACT CAGE CLAMP®CONNECTION
- cross_section_from_mm2_2: 0,5 mm²
- cross_section_to_mm2_2: 10 mm²
- wiring_method: e+f
- measured_voltage_en: 800 V
- measured_shock_voltage: 8 kV
- pollution_degree: 3
- current_intensity_en: 41 A
- weight: 11,845 g
- color: grey
- wiring_type: Front-entry
- no_of_connection_points: 3
- no_of_potentials: 1
- height: 33 mm
- width: 7,5 mm
- width_in: 0,295 in
- depth: 73,5 mm
- depth_in: 2,89 in
- strip_length_from: 13 mm
- strip_length_to: 15 mm
- strip_length_in: 0,55 in
- admission_office_abs: 05-HG476175/1-PDA
- approval_no_aex: E185892
- approval_no_cca: NL6342
- approval_no_csa: 154112-1543858
- approval_no_curus_ex: E185892
- approval_no_dnv: E7570
- approval_no_gl: 26187-05HH
- approval_no_iecex: IECExPTB05.0014U
- approval_no_kema: NL2115558.02
- approval_no_lr: 91/20112(E5)
- approval_no_prs: TE/1718/880590/08
- approval_no_ptb: PTB05Atex1030U
- approval_no_ul: E45172
- approval_no_ur: E45172
- voltage_v_abs: 800
- current_a_abs: 41
- cross_section_mm2_abs: 0,5-16
- voltage_v_aex: 550
- current_a_aex: 50
- cross_section_mm2_aex: 20-8
- voltage_v_cca: 800
- current_a_cca: 41
- cross_section_mm2_cca: 0,5-10
- voltage_v_csa: 600
- current_a_csa: 50
- cross_section_mm2_csa: 20-8
- voltage_v_curus_ex: 550
- current_a_curus_ex: 50
- cross_section_mm2_curus_ex: 20-8
- voltage_v_dnv: 800
- current_a_dnv: 41
- cross_section_mm2_dnv: 0,5-10
- voltage_v_gl: 800
- current_a_gl: 41
- cross_section_mm2_gl: 0,5-6
- voltage_v_iecex: 550
- current_a_iecex: 33
- cross_section_mm2_iecex: 0,5-10
- voltage_v_kema: 800
- current_a_kema: 41
- cross_section_mm2_kema: 0,5-6
- voltage_v_lr: 800
- current_a_lr: 41
- cross_section_mm2_lr: 0,5-10
- voltage_v_prs: 800
- current_a_prs: 41
- cross_section_mm2_prs: 0,5-10
- voltage_v_ptb: 550
- current_a_ptb: 33
- cross_section_mm2_ptb: 0,5-10
- voltage_v_ul: 600
- current_a_ul: 50
- cross_section_mm2_ul: 20-8
- voltage_v_ur: 600
- current_a_ur: 50
- cross_section_mm2_ur: 20-8
