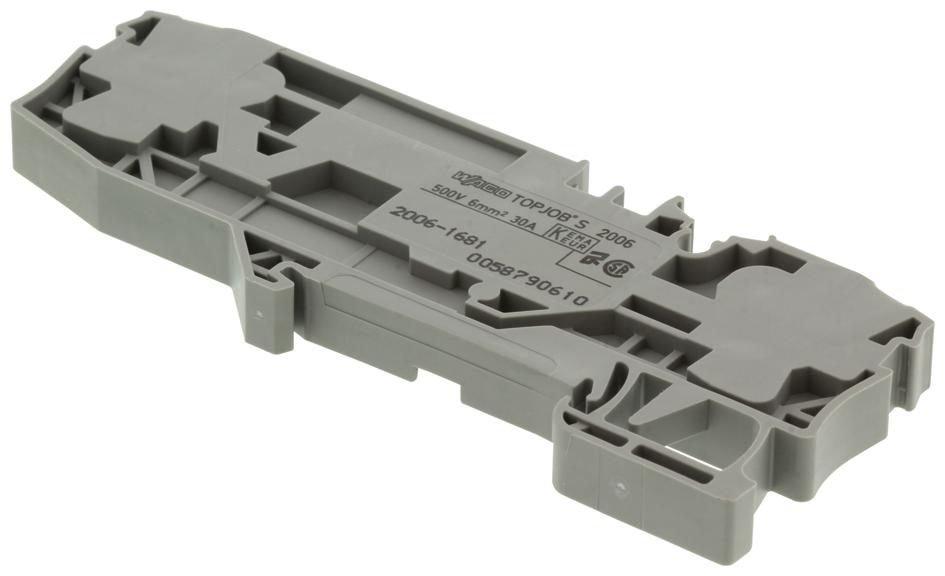

WAGO 20061681 2-conductor fuse terminal block
The WAGO 2006-1681 is a robust and reliable 2-conductor fuse terminal block specifically engineered for use with automotive blade-style fuses. Its design incorporates a convenient test option for easy circuit verification. The Push-in CAGE CLAMP® connection technology ensures a secure and vibration-resistant connection, simplifying installation and maintenance. This terminal block is ideal for applications requiring fuse protection and reliable power distribution in automotive, industrial control panels, and machinery.
WAGO 20061681 2-conductor fuse terminal block Specifications:
- Nominal voltage (III/3): 500 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 25 A
- Rated current 2: 30 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 30 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 30 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 30 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 30 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 6 mm²
- Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
- Solid conductor; push-in termination: 2.5 … 10 mm² / 14 … 8 AWG
- Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
- Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
- Strip length: 13 … 15 mm / 0.51 … 0.59 inch
- Total number of connection points: 2
- Total number of potentials: 2
- Number of levels: 1
- Wiring type: Front-entry wiring
- Number of jumper slots: 2
- Width: 7.5 mm / 0.295 inch
- Height: 96.3 mm / 3.791 inch
- Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Insulation material: Polyamide (PA66)
- Fire load: 0.275 MJ
- Weight: 17.3 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821181729
- Customs tariff number: 85369095000
