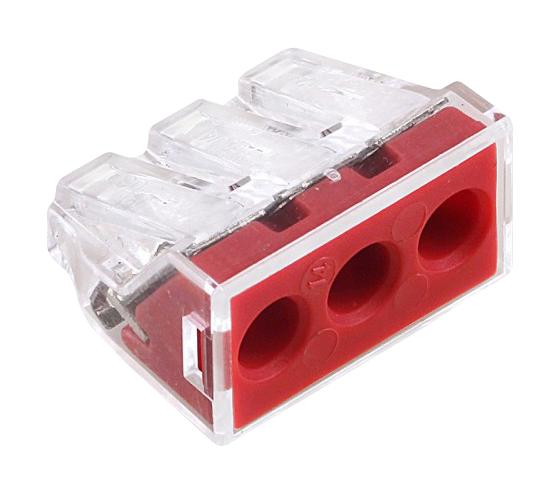

WAGO 773173 3-conductor Push Wire Connector
The WAGO 773-173 is a robust push wire connector specifically engineered for use in junction boxes. This 3-conductor connector is designed to securely terminate both solid and stranded conductors up to a maximum size of 6mm². Its transparent housing allows for visual inspection of the connection, while the red cover provides clear identification. For aluminum conductors, the use of WAGO’s “Alu-Plus” contact paste is recommended to ensure optimal performance and prevent corrosion. This connector is suitable for a wide range of industrial applications where reliable and secure electrical connections are essential.
WAGO 773173 3-conductor Push Wire Connector Specifications:
- Rated voltage (II / 2): 400 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 41 A
- Connection technology: PUSH WIRE®
- Actuation type: Push-in
- Connectable conductor materials: Copper, Aluminum
- Solid conductor size: 2.5 … 6 mm² / 14 … 10 AWG
- Stranded conductor size: 2.5 … 6 mm² / 14 … 10 AWG
- Strip length: 12 … 13 mm / 0.47 … 0.51 inch
- Number of connection points: 3
- Number of potentials: 1
- Wiring type: Side-entry wiring
- Width: 25.6 mm / 1.008 inch
- Height: 14.2 mm / 0.559 inch
- Depth: 20.1 mm / 0.791 inch
- Color: transparent
- Cover color: red
- Flammability class per UL94: V2
- Fire load: 0.115 MJ
- Weight: 5.8 g
- Surrounding air (operating) temperature: 60 °C
- Continuous operating temperature: 105 °C
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821215141
- Customs Tariff No.: 85369010000
