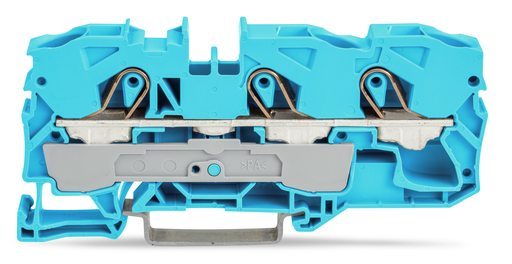

WAGO 20101304 3-conductor Terminal Block
The WAGO 2010-1304 is a robust and reliable 3-conductor through terminal block specifically engineered for use in hazardous environments, meeting Ex e II and Ex i application requirements. Its 10 mm² cross-section accommodates a wide range of conductors, and the Push-in CAGE CLAMP® mechanism ensures a secure and vibration-resistant connection. The terminal block is designed for easy mounting on DIN-rail 35 x 15 and 35 x 7.5, making it suitable for various industrial control and power distribution panels. It is marked for easy identification and offers a safe and efficient solution for connecting multiple conductors in demanding applications.
WAGO 20101304 3-conductor Terminal Block Specifications:
- Rated voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 57 A
- Rated current 2: 76 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 65 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 65 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 65 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 65 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 50 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 10 mm²
- Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
- Solid conductor; push-in termination: 4 … 16 mm² / 14 … 6 AWG
- Fine-stranded conductor: 0.5 … 16 mm² / 20 … 6 AWG
- Fine-stranded conductor; with insulated ferrule: 0.5 … 10 mm² / 20 … 8 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 4 … 10 mm² / 12 … 8 AWG
- Strip length: 17 … 19 mm / 0.67 … 0.75 inch
- Width: 10 mm / 0.394 inch
- Height: 89 mm / 3.504 inch
- Depth from upper edge of DIN-rail: 36.9 mm / 1.453 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: blue
- Insulation material: Polyamide (PA66)
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Number of jumper slots: 2
- Fire load: 0.382 MJ
- Weight: 23.7 g
