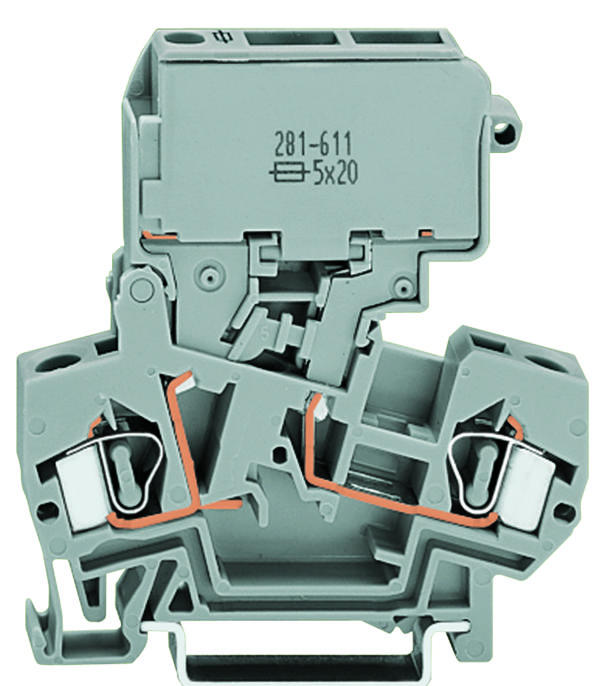

WAGO 281611 Fused Disconnect Terminal Block
The WAGO 281-611 fused disconnect terminal block offers a reliable solution for circuit protection in industrial applications. Designed to accommodate miniature metric fuses (5 x 20 mm), this terminal block features a pivotable fuse holder for easy fuse replacement and visual indication of blown fuses. It supports wire cross-sections from 0.08 mm² to 4 mm² (28-12 AWG) and is rated for voltages up to 800V and currents up to 10A. The block's compact dimensions (60mm height, 8mm width, 60mm depth) make it suitable for space-constrained environments. Its robust construction and pollution degree 3 rating ensure reliable performance in demanding industrial settings.
WAGO 281611 Fused Disconnect Terminal Block Specifications:
- Cross section1: 0.08 - 4 mm²
- Cross section2: 28 - 12 AWG
- Strip length: 9 - 10 mm
- Measured voltage: 800 V
- Measured shock voltage: 8 kV
- Pollution degree: 3
- Current intensity: 10 A
- Height: 60 mm
- Width: 8 mm
- Depth: 60 mm
- No. of connection Points: 2
- No. of potentials: 2
- COLOR: grau
- WEIGHT: 17.26 g
- Comment: für G-Sicherungseinsatz 5 x 20 mm
Buy the 281-611 WAGO Fused Disconnect Terminal Block | myMectronic
Purchase the WAGO 281-611 Fused Disconnect Terminal Block securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281611?
You can click on the BUY or RFQ button to purchase 281611 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281611?
You can download the 281611 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281611?
WAGO
