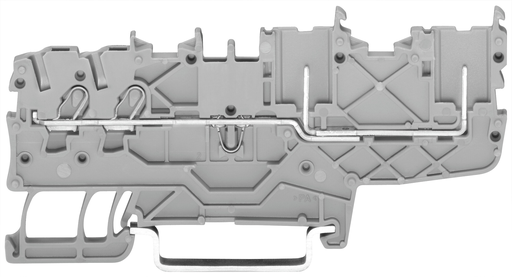

WAGO 20201401 2-conductor Carrier Terminal Block
The WAGO 2020-1401 is a versatile carrier terminal block designed for use in industrial control and automation systems. It is specifically engineered for mounting on 35x15 and 35x7.5 DIN rails, providing a space-saving and organized wiring solution. The Push-in CAGE CLAMP® connection ensures reliable and vibration-resistant connections, while the 1.0 mm² wire capacity accommodates a wide range of applications. This terminal block is suitable for various electrical applications, including power distribution, signal processing, and equipment control, contributing to the overall efficiency and reliability of industrial systems.
WAGO 20201401 2-conductor Carrier Terminal Block Specifications:
- Nominal Voltage (III/3): 500 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 13.5 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 10 A
- Connection Technology: Push-in CAGE CLAMP®
- Nominal Cross-section: 1 mm²
- Solid Conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Solid Conductor (Push-in): 0.5 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded Conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded Conductor (with insulated ferrule): 0.5 … 0.75 mm² / 20 … 18 AWG
- Fine-stranded Conductor (with ferrule, Push-in): 0.5 … 0.75 mm² / 20 … 18 AWG
- Strip Length: 9 … 11 mm / 0.35 … 0.43 inch
- Width: 3.5 mm / 0.138 inch
- Height: 85.2 mm / 3.354 inch
- Material: Polyamide (PA66)
- Flammability Class: V0
- Weight: 6.6 g
Buy the 2020-1401 WAGO 2-conductor Carrier Terminal Block | myMectronic
Purchase the WAGO 2020-1401 carrier terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20201401?
You can click on the BUY or RFQ button to purchase 20201401 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20201401?
You can download the 20201401 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20201401?
WAGO
